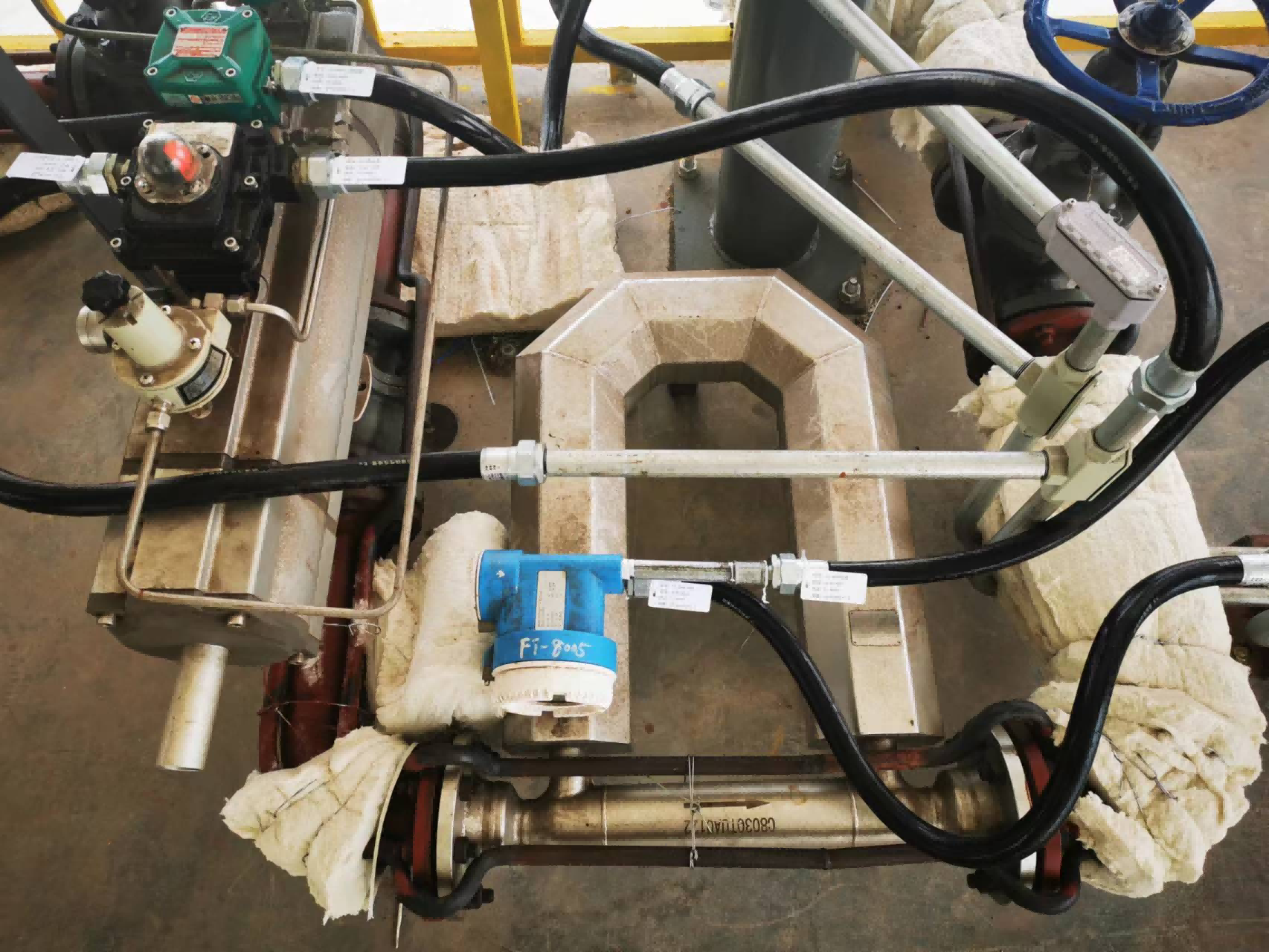

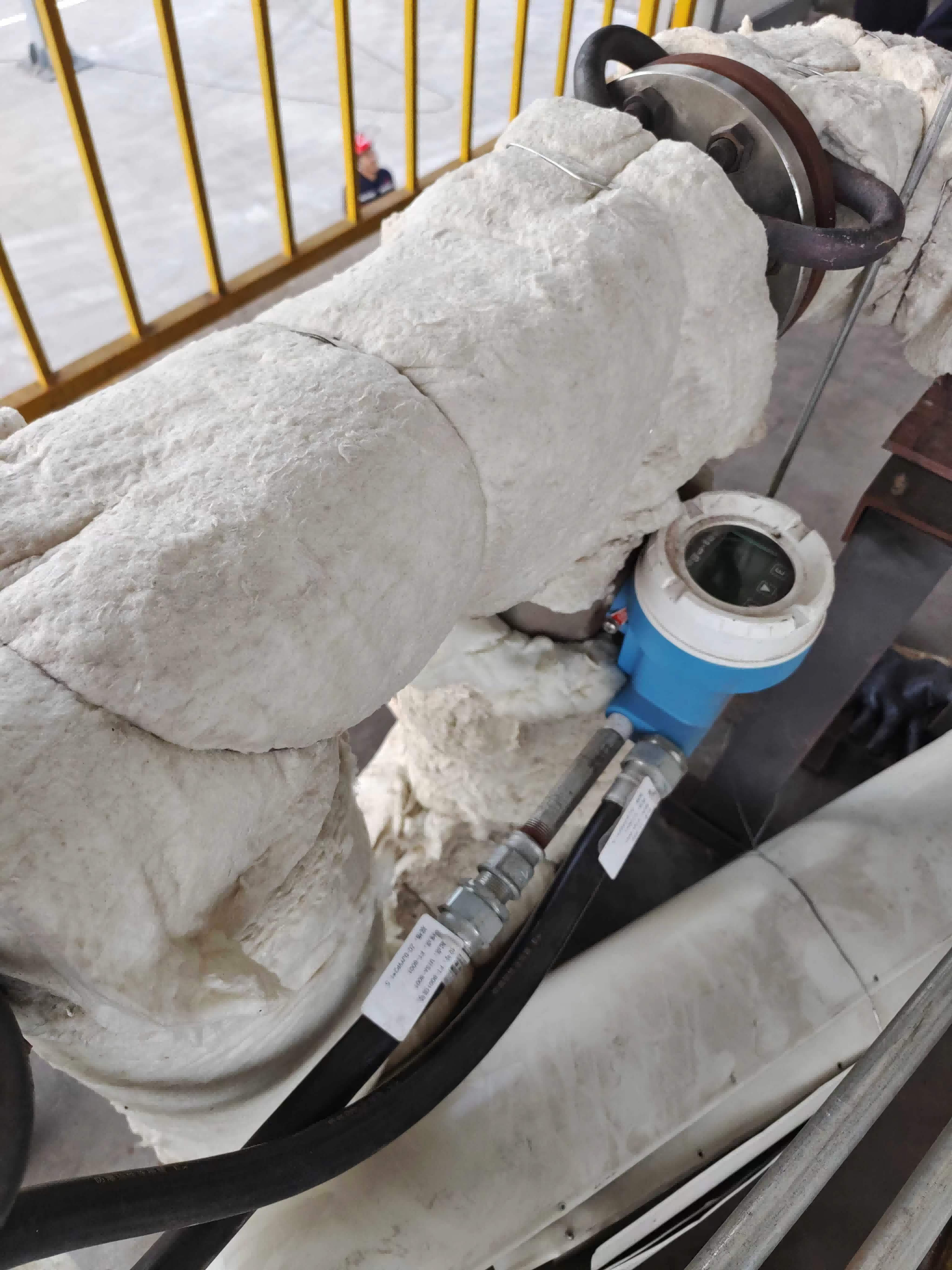

Project of treating annually 150,000 tons of waste coal tar

MG9900 Series Coriolis Mass Flowmeter

● Medium：Scallion oil, tar, coal light oil, etc.
● Diameter：DN80,DN100
● Output Signal：4~20mA+HART+Pulse
● Process Temperature：45℃
● Explosion proof：Ex d ib IIC T6 Gb
● Ingress Protection：IP67
● Accuracy：±0.2％
● Process Connection：HG/T20592-2009 DN80 PN40 RF
● Measurement Tube Material：SS316L
● Measurement Tube Form：U-Shaped

● The whole set of control schemes for the quantitative loading system can achieve dosing control, IC settlement, and mobile payment
● There are also measurement schemes for various pipe types such as U-shaped, V-shaped, and straight pipes
● High accuracy 0.2％，Large range down ratio：1:40
● Mega-tek has won this complete set of projects. Mega-tek has provided more than 300 sets of flowmeters, pressure, level, and temperature measurement solutions to solve the on-site measurement problems of customers
