Hubei Dinglong Co., Ltd.

Class A Workshop 1 Project

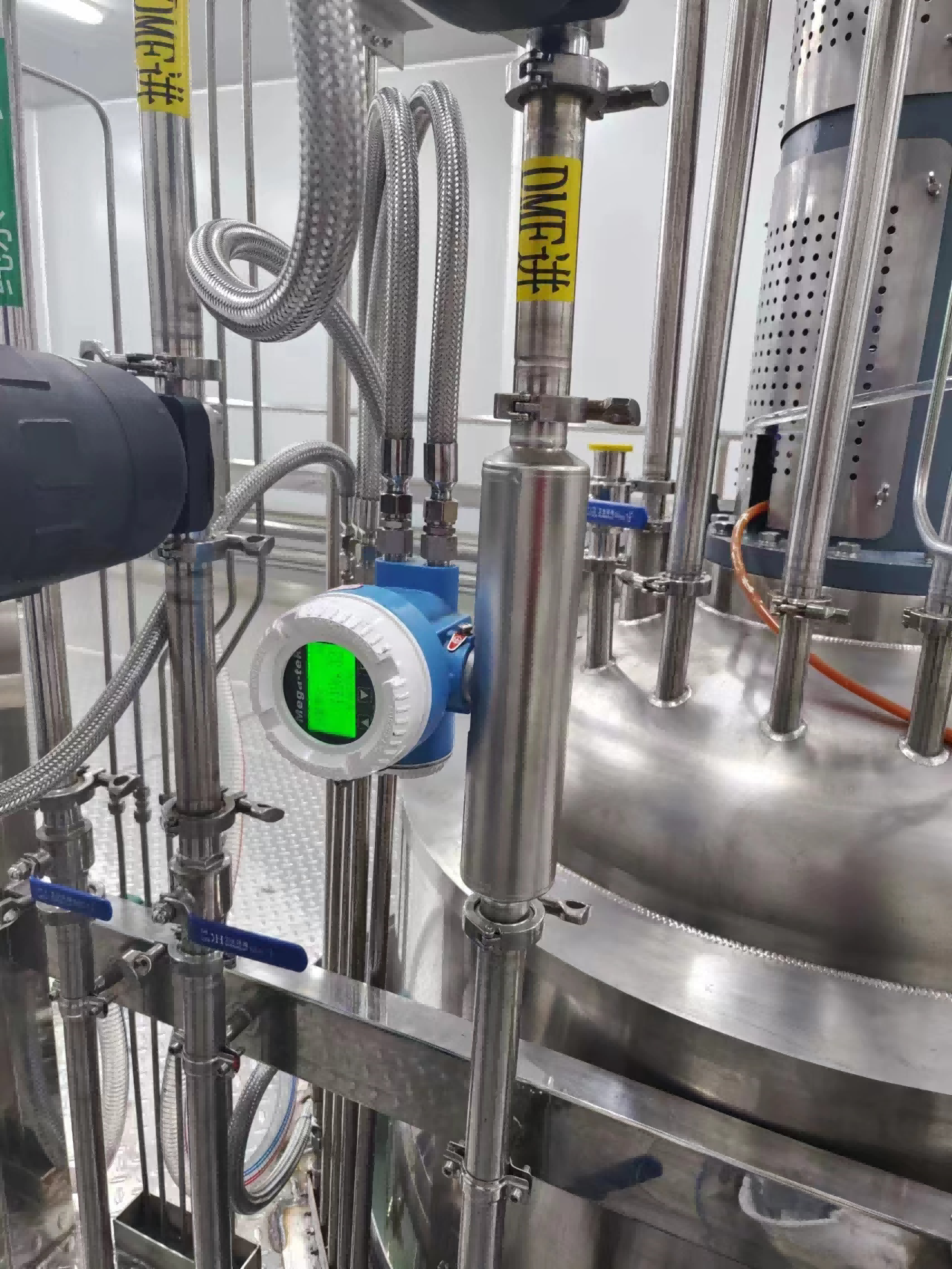

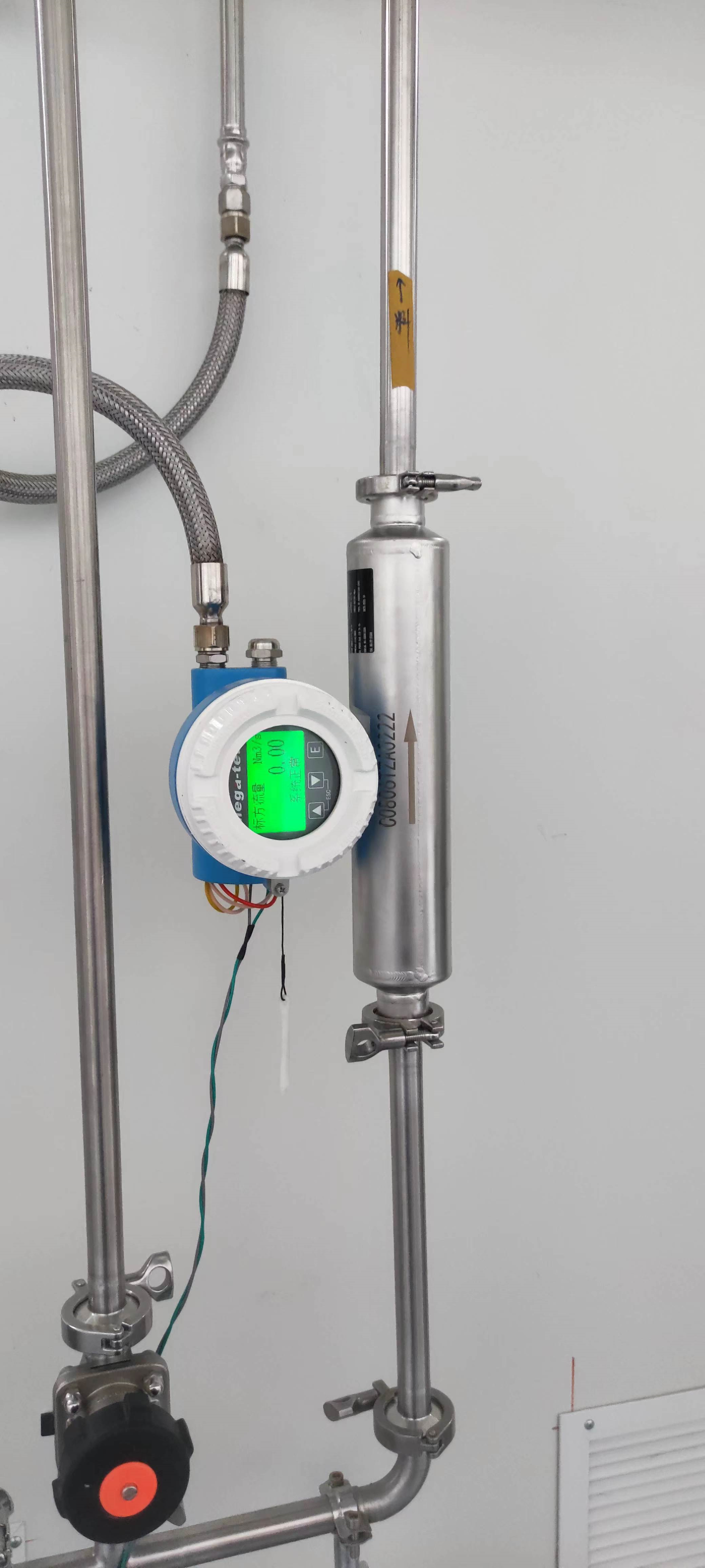

MG9900 Series Coriolis Mass Flowmeter

● Medium：Ultra - pure water,DMF etc.
● Diameter：DN25
● Output Signal：4~20mA+HART+Pulse
● Process Temperature：25℃
● Explosion proof：Ex dII CT6 Gb
● Ingress Protection：IP67
● Accuracy：±0.2％
● Process Connection：Clamp ASME BPE-2019 PN10 1"
● Measurement Tube：SS316L
● Measurement Tube Form：Straight-shaped

● Hygienic measurement scheme for ultra-pure water, with cleanliness treatment and electrolytic polishing to 0.4
● The straight-tube measurement pipe saves installation space and is convenient for debugging
● According to the actual operating conditions on site, measurement schemes for various pipe types such as U-shaped, V-shaped, and straight-shaped can be selected
