Special application of boiler steam drum
High Temperature and High Pressure Magnetostrictive Level Transmitter

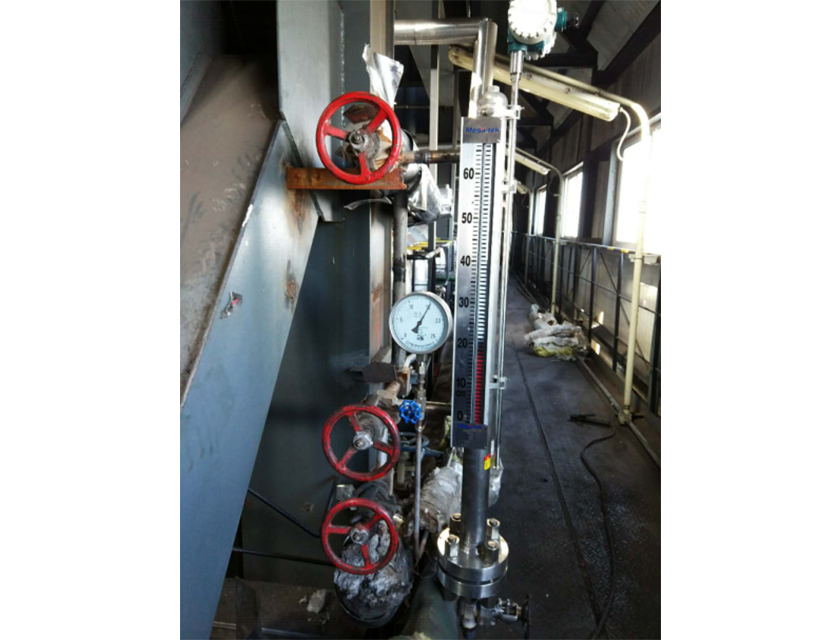

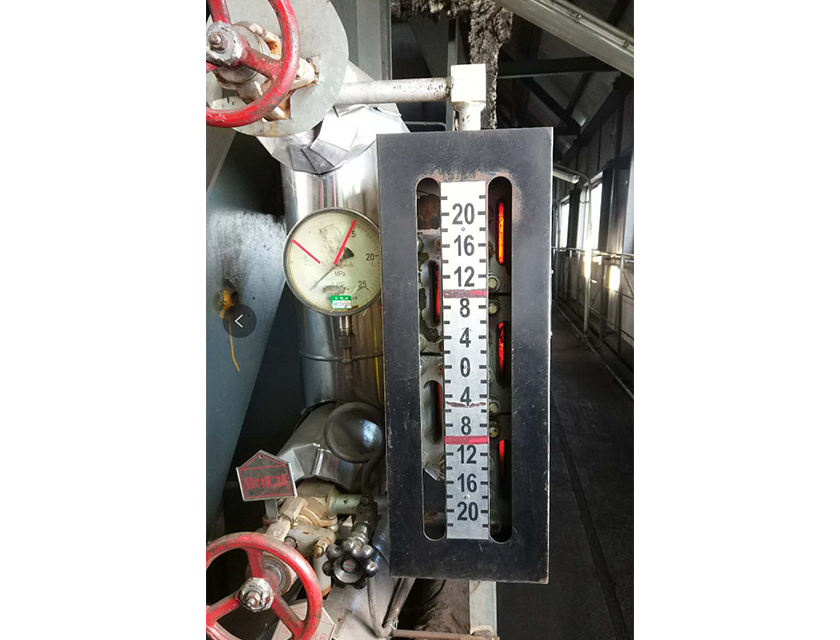

Magnetostrictive Level Transmitter replaces on-site Dual Color Level Gauges, which can be transmission signal remotely or displayed locally
● Measurement Range:650mm
● Temperature:380℃, Pressure:17.7MPa, Density:0.62g/cm³
● Advantages of High Temperature and High Pressure Magnetostriction
● Special insulation structure
● Magnetic pressure sensor with a far magnetic distance greater than 45mm
● Automatic gain and liquid level tracing function to solve fluctuation problems
● Adopting imported waveguide wires to ensure the sensitivity and reliability of the product
● Adopting modular design, on-site replacement of circuit modules does not require further calibration
● Dual chamber, isolation explosion-proof, high-pressure casting aluminum housing
● Design of wiring and circuit separation
Through this renovation, remote output and on-site indication can be achieved, making it convenient for inspections. Solving high-pressure working conditions while increasing the brand influence of Mega-tek
