Won the bid for the BDO integrated project of Inner Mongolia Sanwei New Materials Co., Ltd.

Project location
Won the bid for the BDO integrated project of Inner Mongolia Sanwei New Materials Co., Ltd.
Application Products

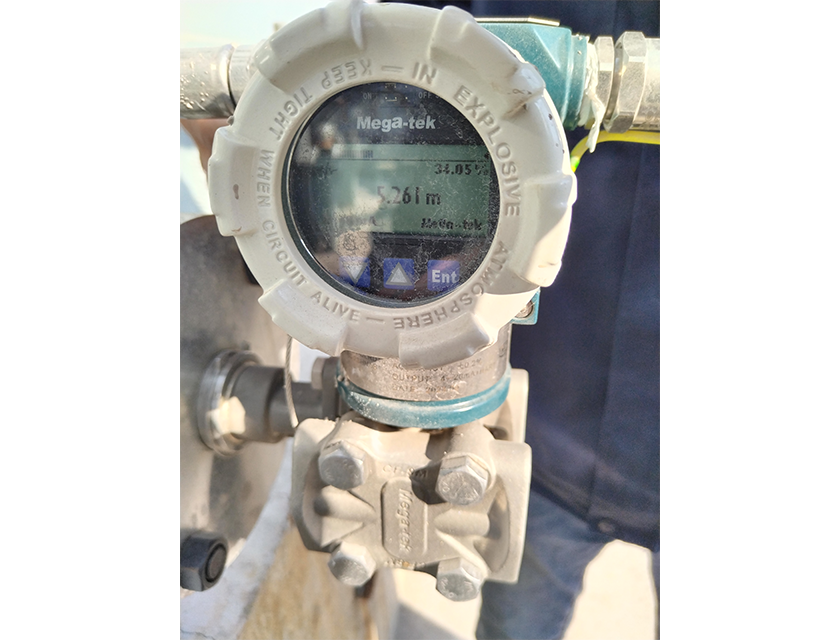

MG5600ERS Series Electronic Remote Sensor System
Application Parameters
● Output Signal：4~20mA+HART LCD 2-wire
● Explosion-proof：Exia IIC T6
● Ingress Protection：IP66
● Accuracy：0.035%
● Process Connection：HG/T20615 3" CL150 RF
● Flange Material：316
● Medium：butanol, methanol
● Diaphragm Material：SS316L
Application Highlights
Although the double flange differential pressure liquid level system is a mature and reliable technology, it has always been difficult to be applied in high-end vessels and towers.Because these require longer capillaries for easy installation, excessively long capillaries cause significant delays in pressure transmission, and errors become more pronounced with changes in ambient temperature. MG5600ERS Series Electronic Remote Sensor System perfectly solves the above working conditions.
