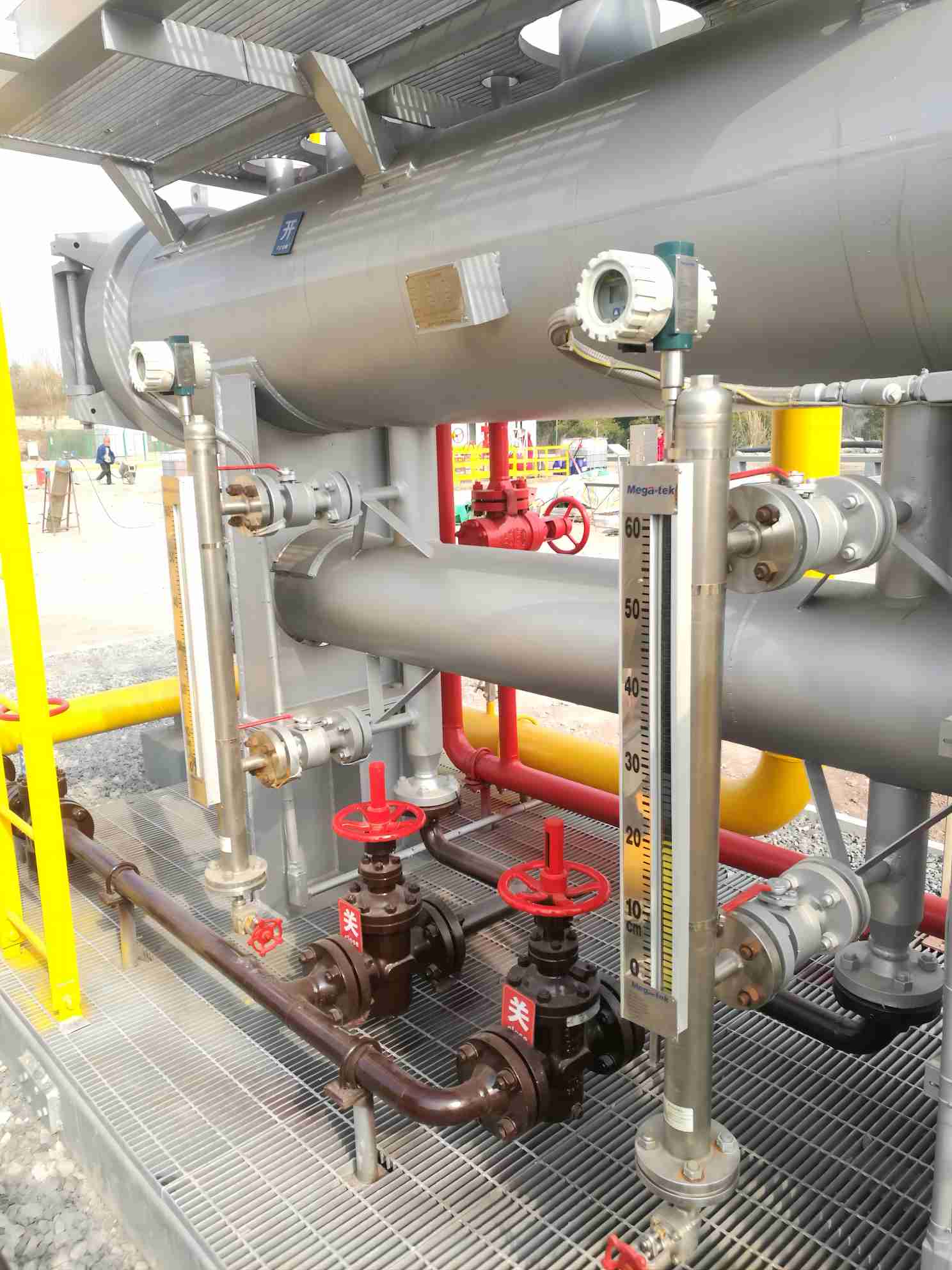

Weiyuan Operating Area of Chuanqing Shale Gas

● Measurement Range：600mm
● Temperature：100℃
● Pressure：6.3MPa
● Density：700kg/m³，liquid level of oil
700/1000kg/³，Liquid Interfacce of oil and water
1000kg/³，Liquid level of water

● The float is made of aviation-grade titanium material, with a 10MPa compressive resistance design and an inner lining of military-grade special titanium material reinforcing rings
● The magnetic steel is quenched, being resistant to high temperatures, without demagnetization or loss of magnetism

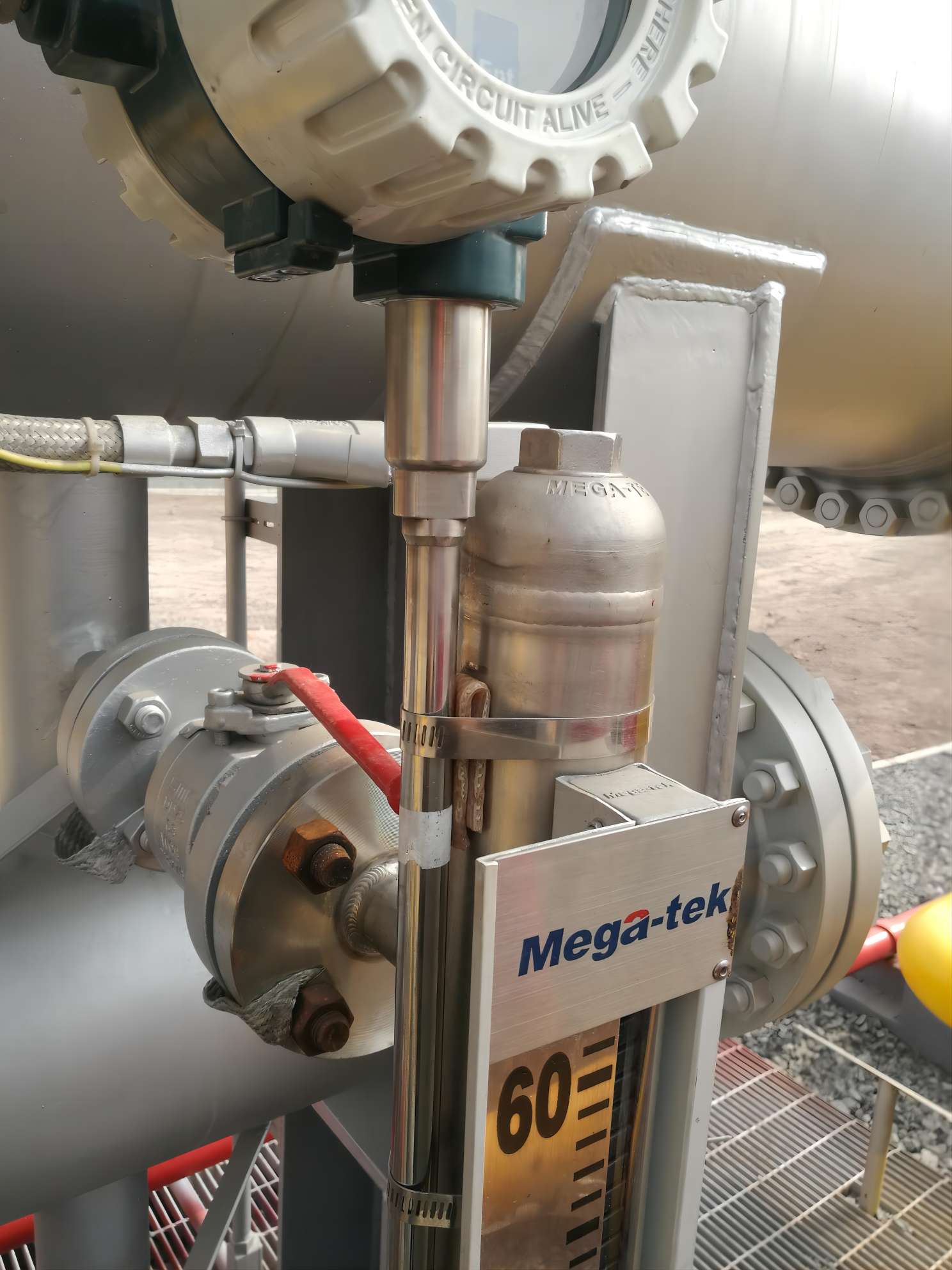

● The turning plate is made of special materials and is magnetized as a whole, with a uniform magnetic distribution
● The vacuum glass tube is sealed to protect the turning plate from fogging, frosting, dust, and oxidation
● For the separation and measurement of oil, gas, and water, through precise calculation of the floating ball, reliable measurement of the float in oil, oil-water mixture, and water is ensured

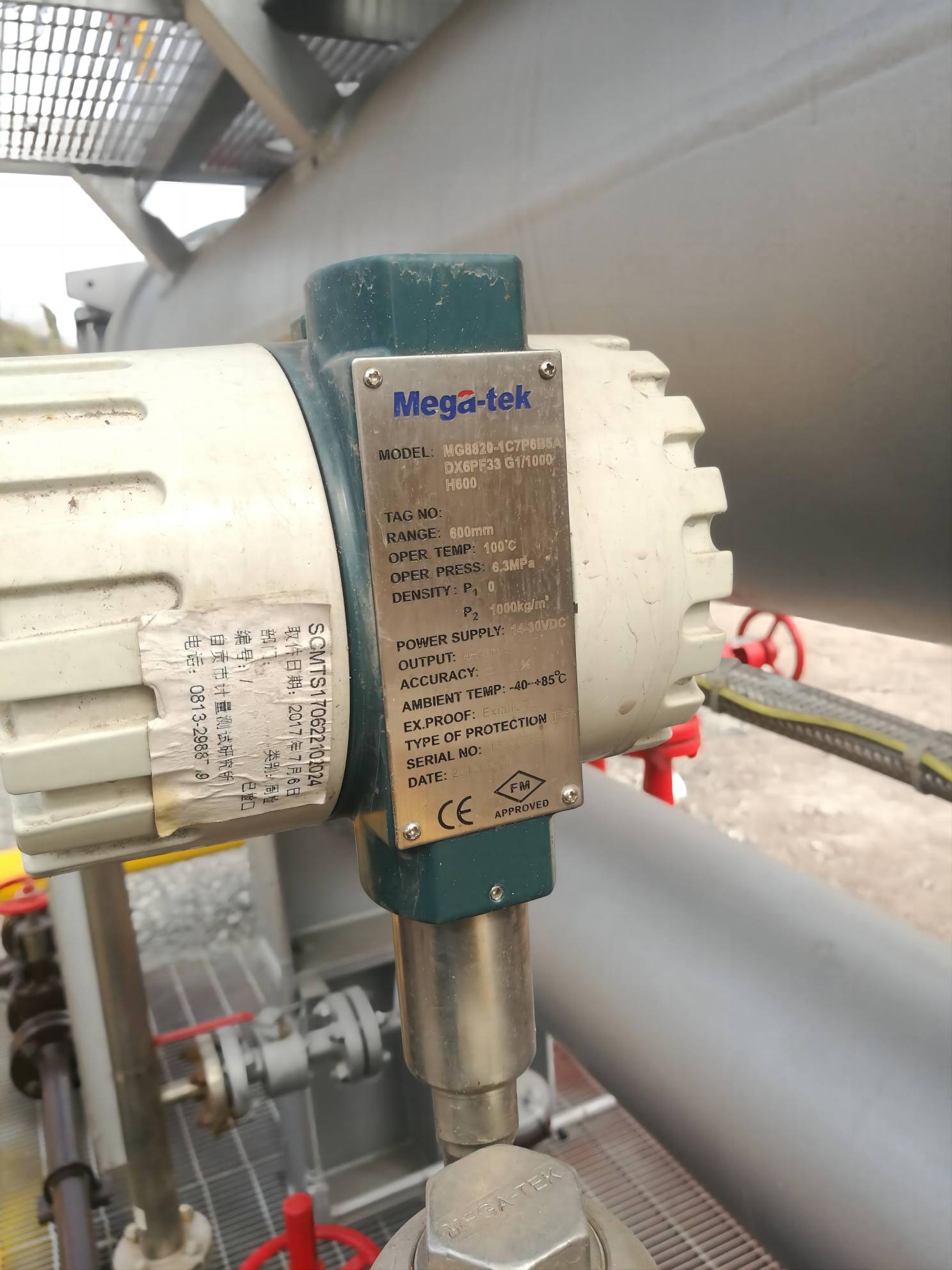

● Magnetostriction is used for remote transmission output to ensure a high precision of ±1mm
● It has provided stable and reliable measurement since it was put into use in October 2016
