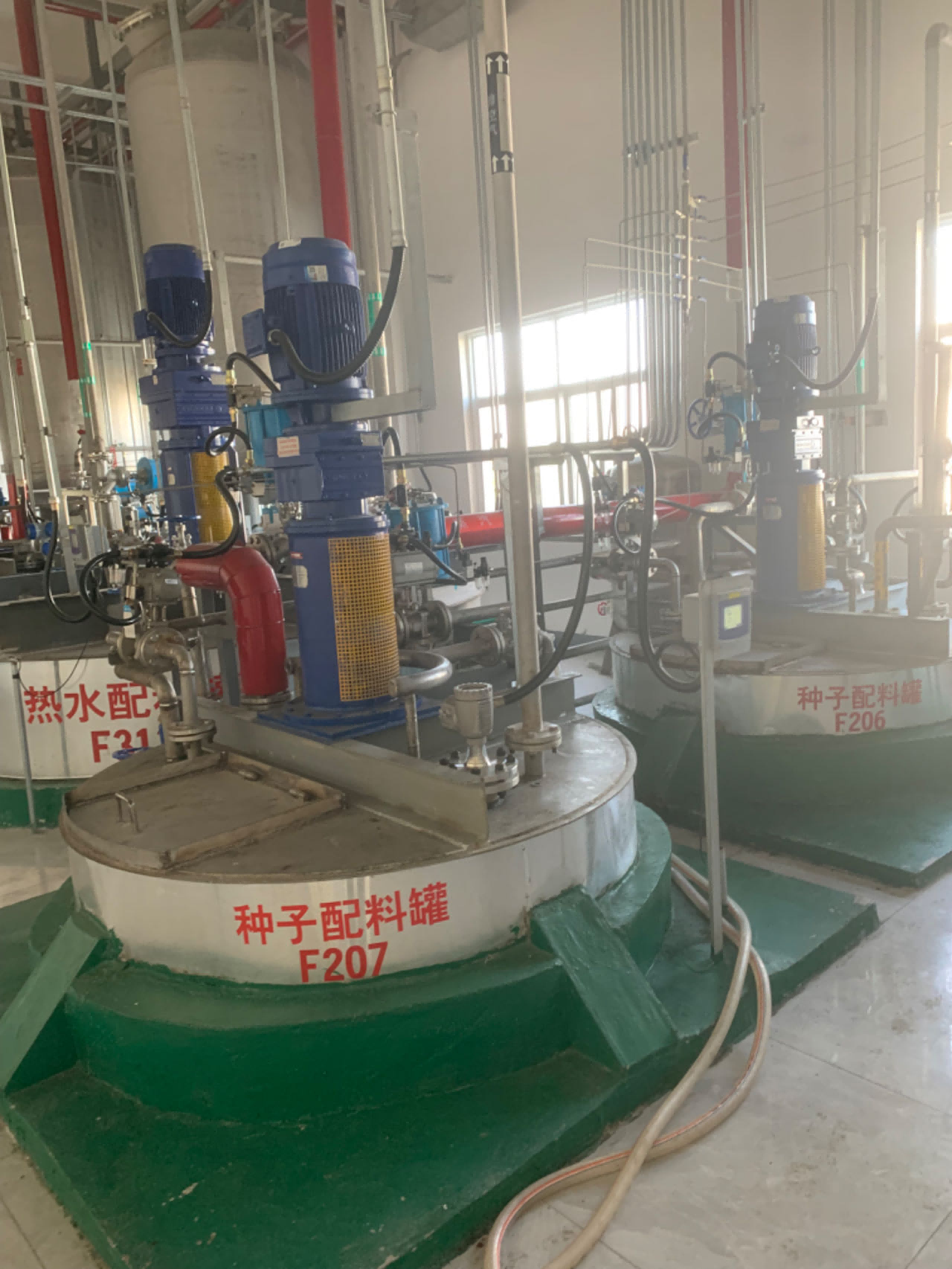

Workshops 1 and 2 for Vitamin Extraction of Guangji Pharmaceutical (Mengzhou) Co., Ltd. with an Annual Output of 1000 Tons (1%)

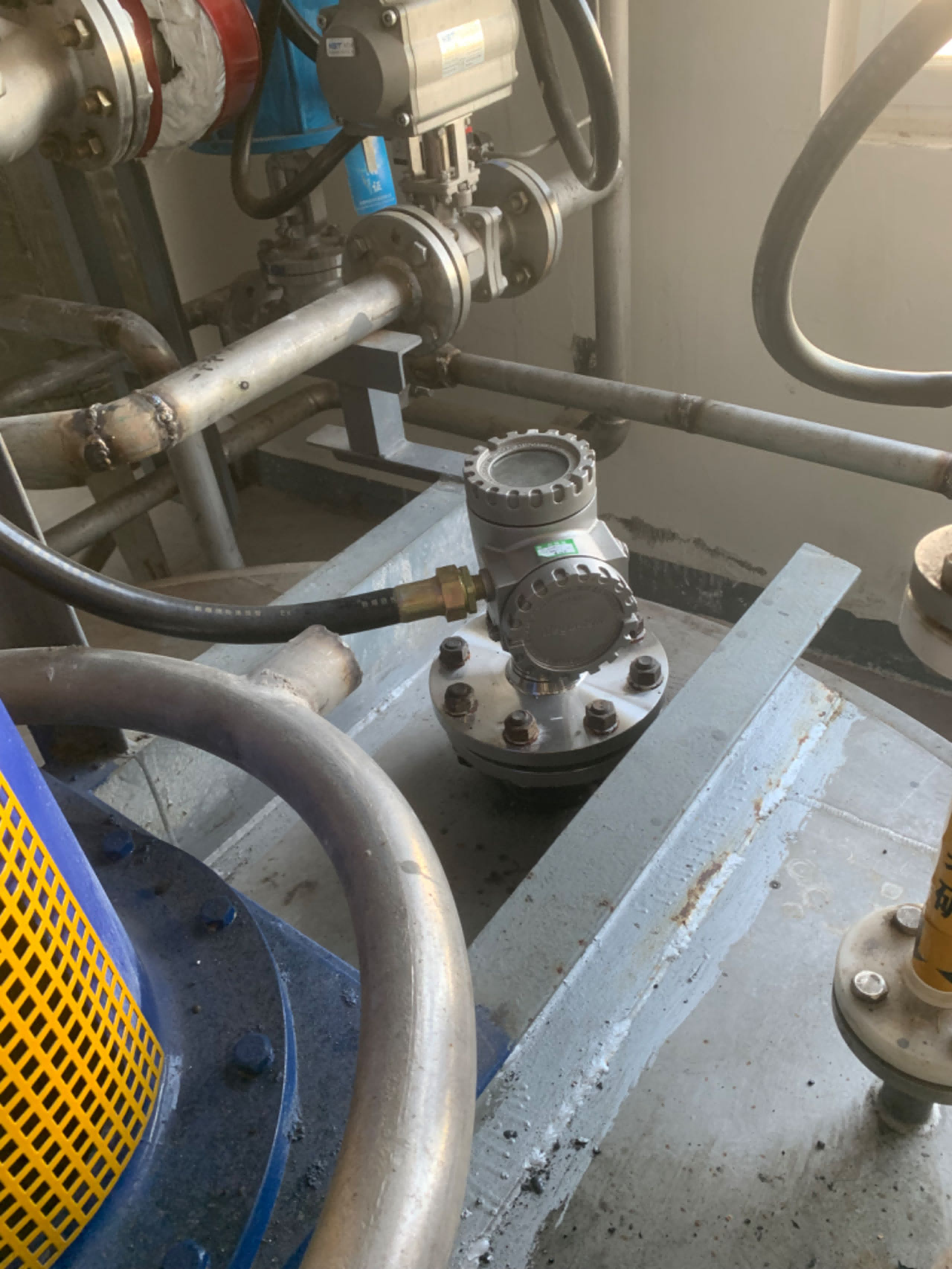

MG8900 Series Radar Level Transmitter-80GHz

●Medium：Buffer Solution, Batching Solution, Secondary Hydrolysis Solution, Hydrolysis Solution
●Temperature：120℃
●Pressure：0.1MPa
●Measurement Range：Max. 15m
●Output Signal：4～20mA+HART

● The 3° emission angle can easily penetrate through smoke
● With a stainless steel housing, a dual-chamber structure and integrated wiring terminals that are equipped with lightning protection, wrong reverse connection prevention and anti-interference capabilities, it can solve the external interference caused by stirring.
● The spherical lens antenna can solve the problem of material adhesion
● Due to the influence of feeding, there is about 500mm of foam in the medium. There is stirring on site. Under the conditions of stirring and foam, the signal reception is greatly affected. The algorithms of Mega-tek for foam and stirring can effectively solve such problems
● For this complete set of projects, Mega-tek has provided more than 700 sets of temperature, pressure, level and flow measurement solutions to solve the on-site measurement problems of customers
