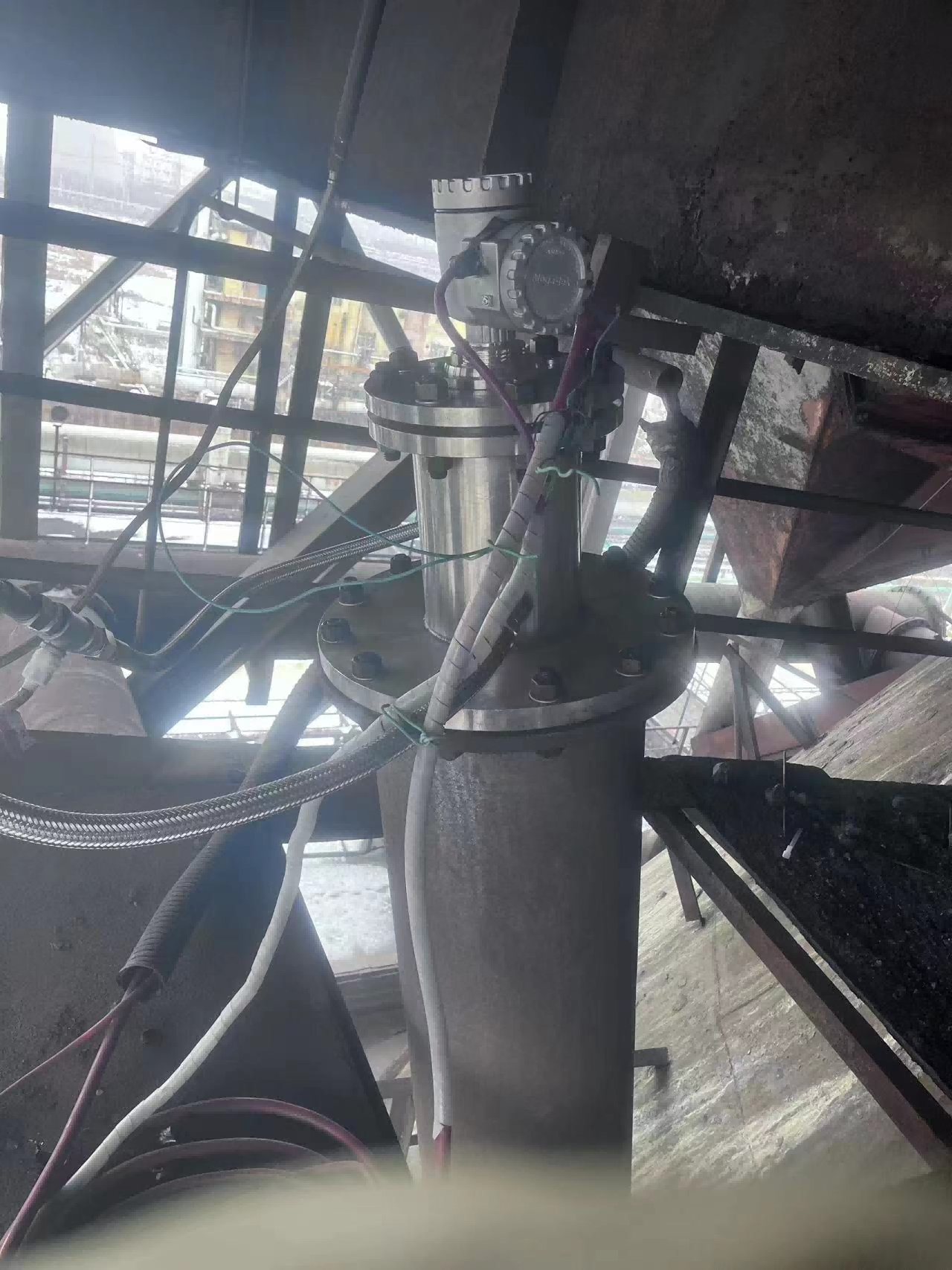

Ansteel Group Corporation Limited

● Working Condition：Blast furnace fuel
● Medium：Lump coke
● Temperature：1200℃
● Pressure：0.1MPa
● Measurement Range：30m

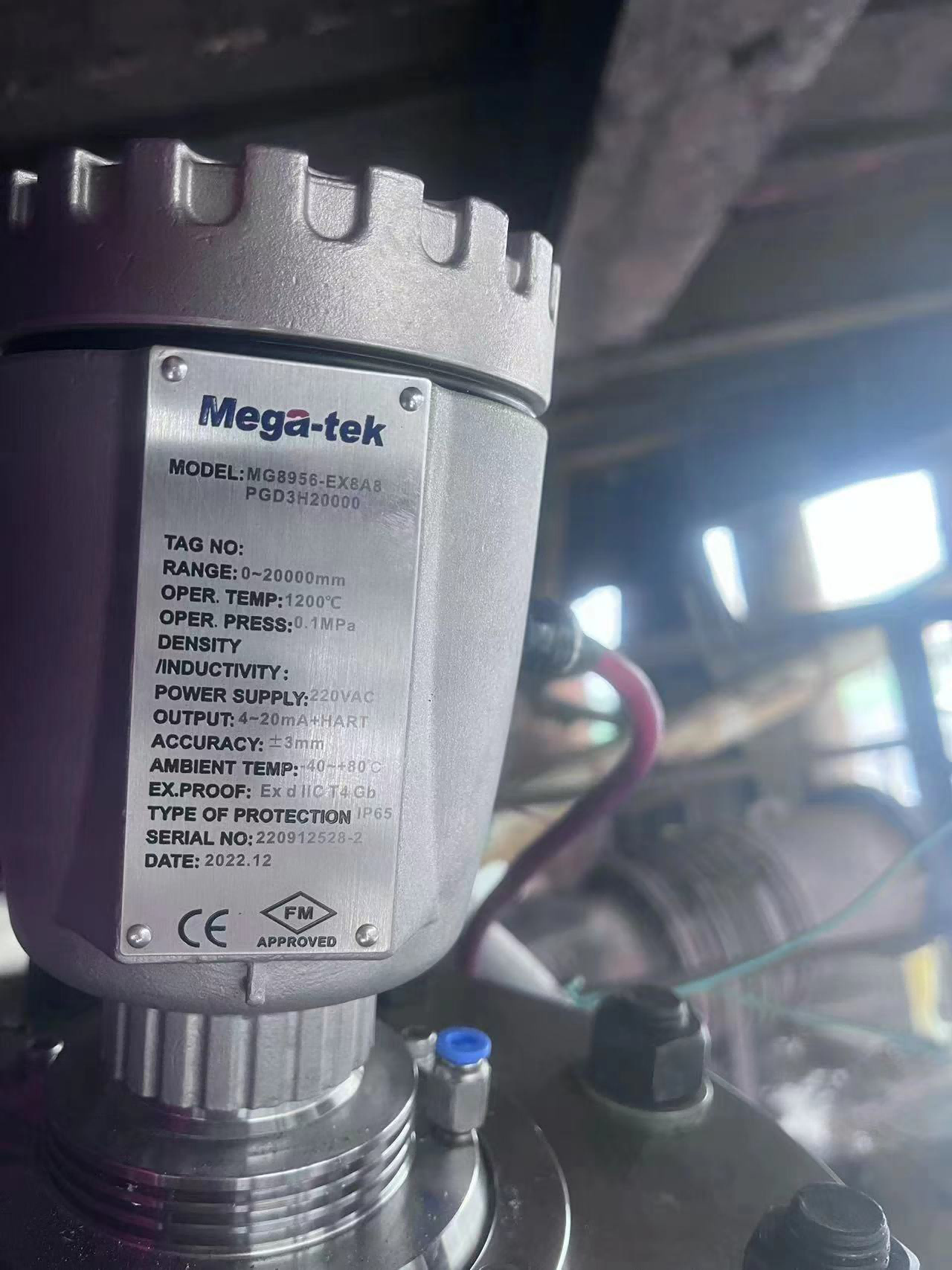

● Output Signal：4～20mA+HART，220VAC 4-wire

● Under the combined effect of an emission angle of about 3° along with the lens and the condenser, the signal is enhanced and focused. It can easily penetrate the quartz heat-insulating sheet used for heat insulation and a certain length of antenna heat dissipation tube, enabling accurate measurement of the material level even in the presence of diffused dust；
● With a special algorithm for dealing with the flying ash and heat-insulating glass, such signals can be effectively shielded, allowing for the direct calculation of the material height；
● It features a stainless steel housing, a dual-chamber structure, and integrated wiring terminals with built-in lightning protection, reverse connection prevention, and anti-interference capabilities；
● Replace the well-kown foreign products.
