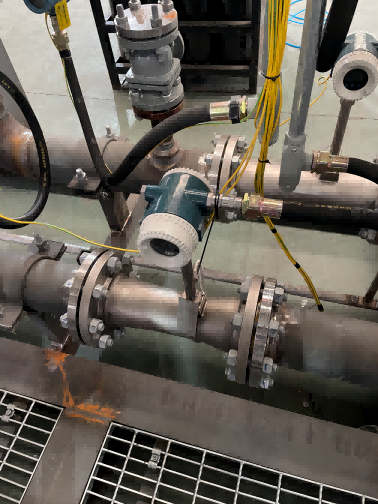

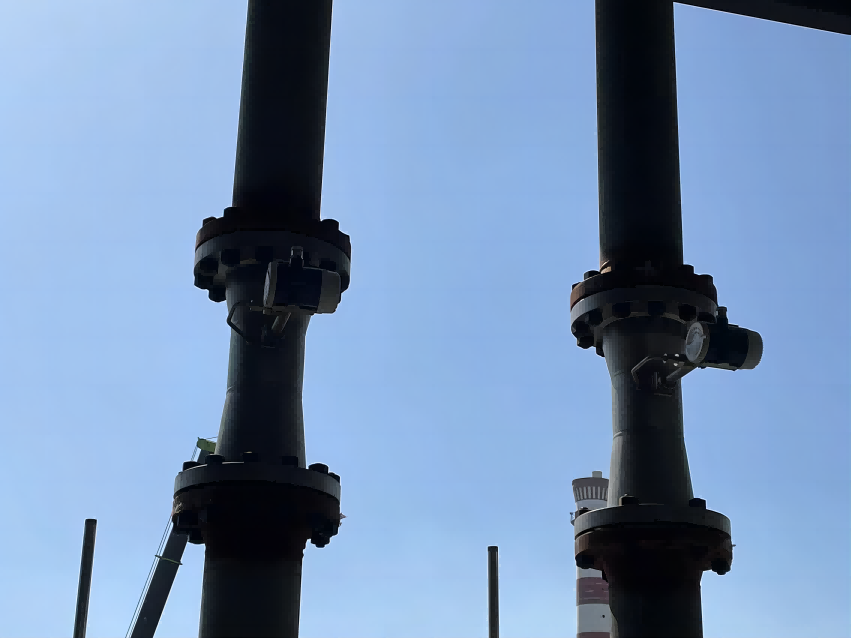

Reduction Module of the Silicon Material Project in Phase II of the Upstream and Downstream Coordination Project of Polysilicon of Ningxia Baofeng Silicon Materials Co.,Ltd.

MG9650 Series Vortex Processing Flowmeter

● Medium：Demineralized water, nitrogen, etc.
● Output Signal：4~20mA+HART
● Process Temperature：195℃
● Explosion proof：ExiaⅡCT4
● Ingress Protection：IP65
● Accuracy：±1.0％
● Process Connection：Flange
● Diameter：DN150, DN80

● With low requirements for straight pipe sections (3D in the front and 1D in the back), the installation is more flexible and it is used for skid-mounted systems
● Designed with 4 piezoelectric ceramic sensors, which can eliminate the influence of external vibrations to the greatest extent
● The flowmeters in this project operate intermittently and there are working conditions of instant temperature changes from 35℃ to 185℃. The dual-probe detection technology can enhance the signal intensity and suppress interference
● A total of 420 sets of vortex precession flowmeters are used in this project for the skid-mounted units of the reduction device
