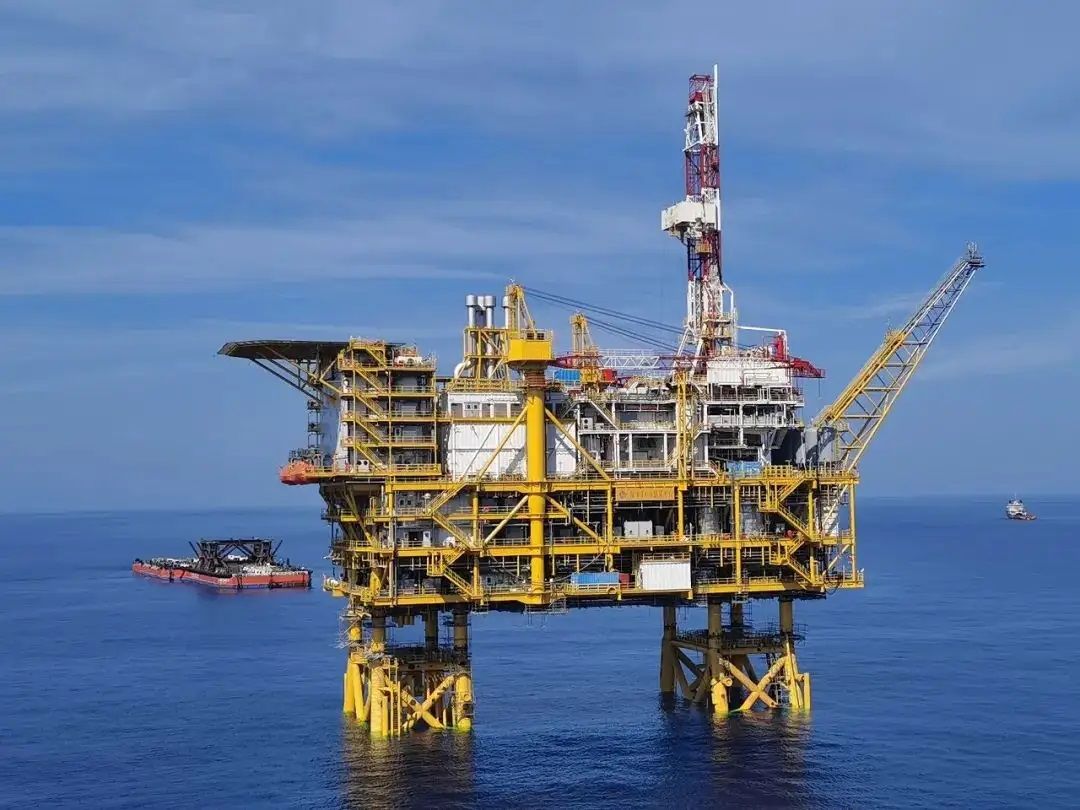

Offshore Platforms of CNOOC
Suizhong SZ36 Platform
CNOOC Liaodong LD10/JZ25
Boxi Operating Company - QK18
Bonan Operating Company - KL10
Bozhong Operating Area BZ34

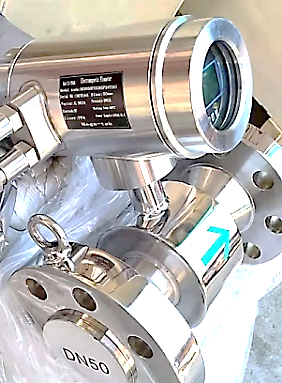

MG9500 Series Electromagnetic Flowmeter

● Medium：high - pressure water injection, geothermal water
● Temperature：100℃
● Pressure：900LB、1500LB、2500LB
● Output Signal：4~20mA+HART
● Housing Material：SS316
● Body Material：SS316
● Lining Material：PFA
● Electrode Material：SS316L

● The seawater on offshore platforms is highly corrosive to the flow meter housing. Therefore, flow meter housings are made entirely of 316SST
● Having passed the certification of classification societies, they can be used on ships and offshore platforms
● Solutions for ultra-high pressure flow meters have broken the monopoly of imported products. Framework agreement on electromagnetic flow meters of CNOOC
● Welding shall be subject to non-destructive testing in accordance with the requirements of NB/T47013, and shall meet the first-class qualification standard
