Hunan Jinyuan New Materials Co., Ltd.
The Project of Comprehensive Recycling by Dismantling 100,000 Tons of Spent Lithium-ion Power Batteries

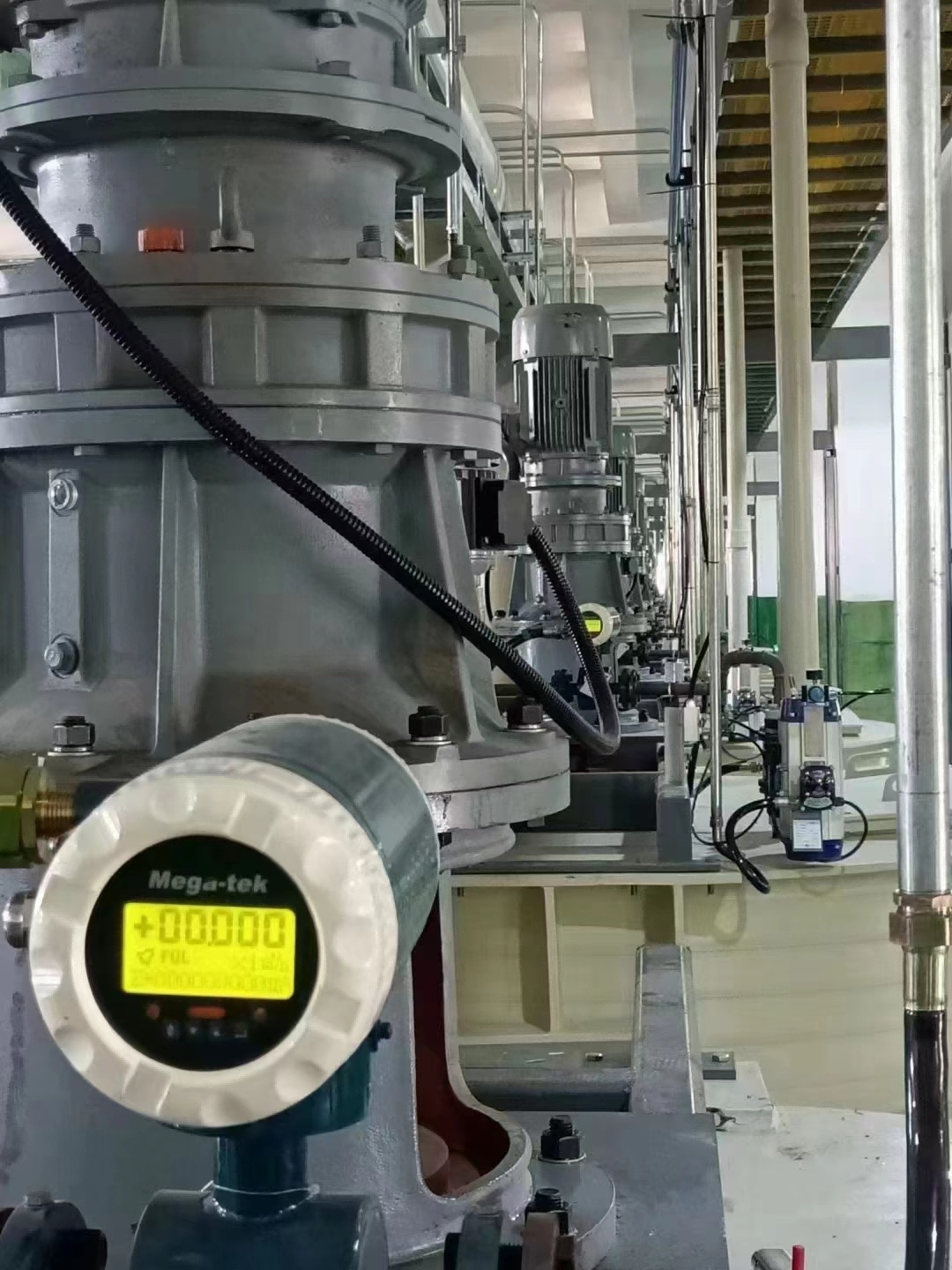

MG9500 Series Electromagnetic Flowmeter

● Medium：98% concentrated sulfuric acid, MVR manganese sulfate mother liquor
● Temperature：25℃
● Pressure：0.3mpa
● Output Signal：4-20mA+HART
● Lining Material：PTFE
● Electrode Material：Tantalum

● The Electromagnetic Flowmeter is not significantly affected by the fluid density, viscosity, temperature and pressure, and has high accuracy
● The medium in this project is highly corrosive. The electrodes of the flowmeter are made of tantalum material, which perfectly solves the corrosive working conditions
● With a three-electrode structure (with a grounding electrode), there is no need for a tantalum grounding ring, thus saving costs

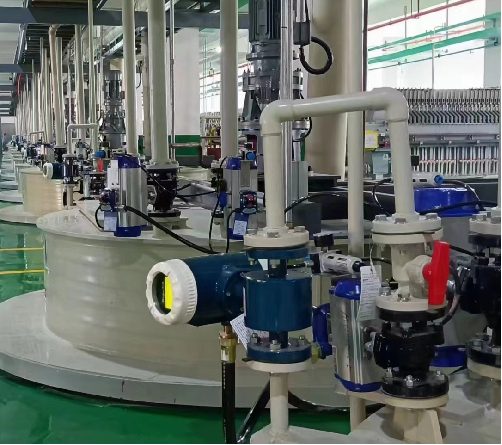

● In this project, a total of more than 180 electromagnetic flowmeters are used for highly corrosive media such as strong acids and alkalis in all workshops
