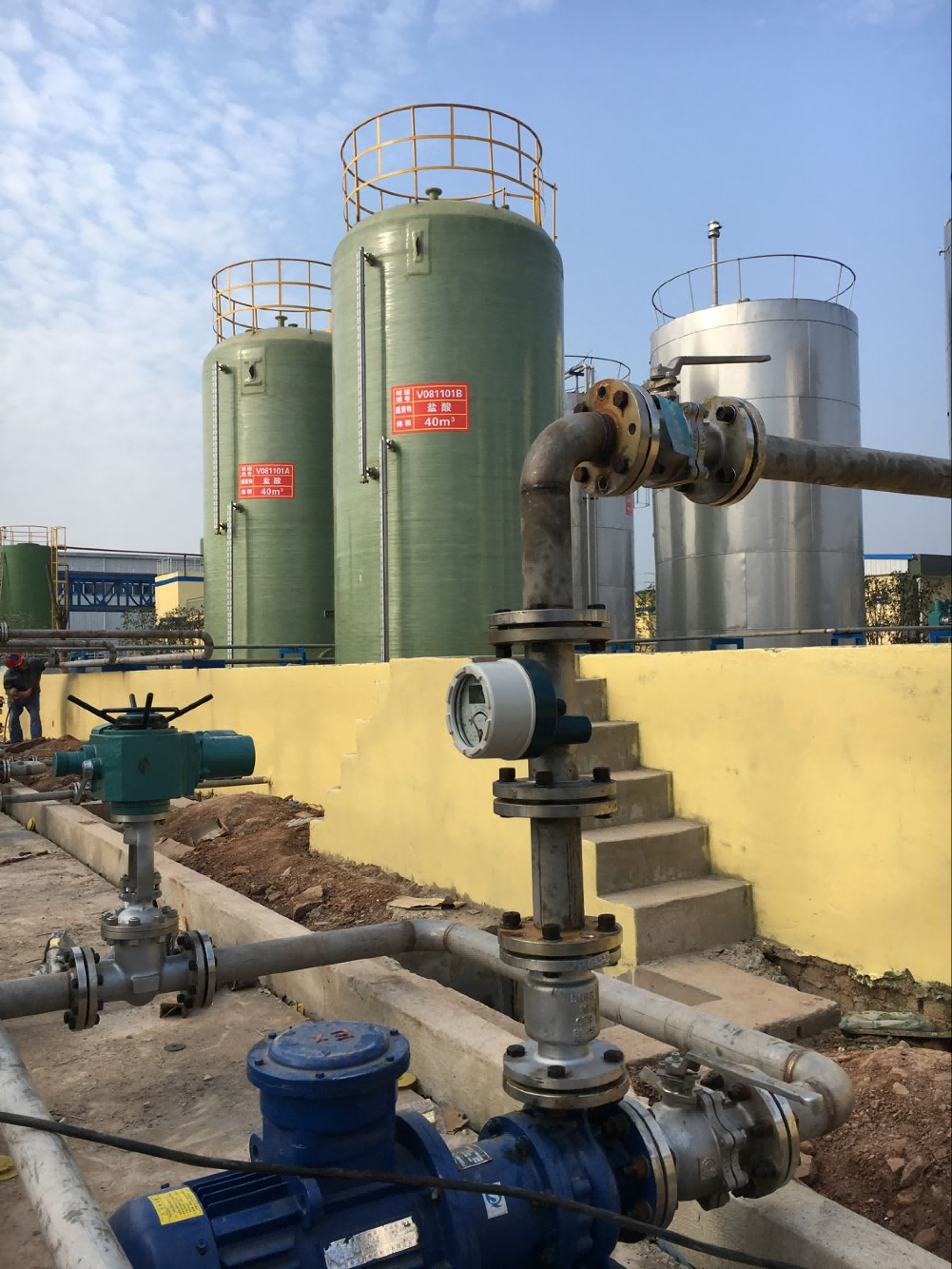

Methyl Lactate and Its Derivatives

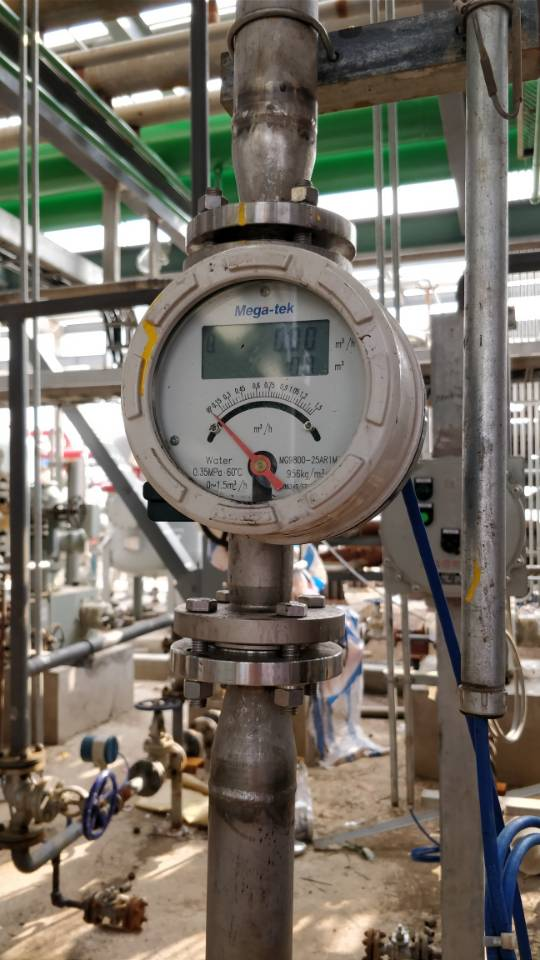

MG9800 Series Metal Rotameter

● Medium：Dichloroethane, Methyl Isobutyl Ketone, Methyl Lactate
● Temperature：35℃
● Pressure：0.3MPa
● Density：1009kg/m³,800kg/m³
● Output Signal：4~20mA+HART
● Process Connection：HG/T20592-2009 DN50 PN16 RF

● Special Measurement Schemes for Biomedical Medium
● Magnetic isolation sensors, without additional openings, reducing leakage points
● Laser-engraved dials, which can be with backlight and allow for the online replacement and calibration of transmitters
● Rotameters feature small size, easy operation, stable measurement, high cost performance and extremely low requirements for the upstream straight pipe section during installation
