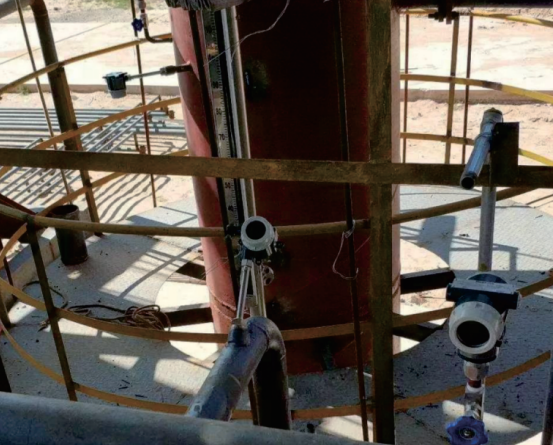

An Energy and Chemical Factory in Ningxia

MG2600 Series Temperature Transmitter

● Sensor total length L*I=（8")*（2"),PT100, 4-wire，Class A
● Armored core：diameter 6mm，SS316，
● Thermowell：bar drilled tapered thermowell φ23-17,
● Process Connection：Thread 1/2"NPT
● Transmitter housing material：Copper-free aluminum with epoxy coating
● Output Signal：4~20mA+HART 24VDC LCD display
● Explosion proof：Ex d IIC T6 Gb
● Ingress Protection：IP66，accuracy 0.1%
