Boiler drums in a certain Group in Ningxia

High-temperature and high-pressure resistance Magnetostrictive Level Transmitter

● Measurement Range：650mm
● Temperature：380℃
● Pressure：17.7MPa
● Density：0.62g/cm³

● Special Heat Insulation Structure
● The far magnetic distance of the piezomagnetic sensor is > 45mm
● The automatic gain and liquid level tracing function can solve the problem of fluctuation
● Imported waveguide wires are used to ensure the sensitivity and reliability of the product
● The modular design, and there is no need for recalibration when replacing the circuit module on site
● Double-chamber isolation, explosion-proof, and high-pressure cast aluminum housing
● The wiring and circuit parts are designed separately

● Through this transformation, the on-site output can be remotely transmitted and also indicated locally, which is convenient for patrol inspection. It solves the high-pressure working condition and at the same time increases the brand influence of Mega-tek.

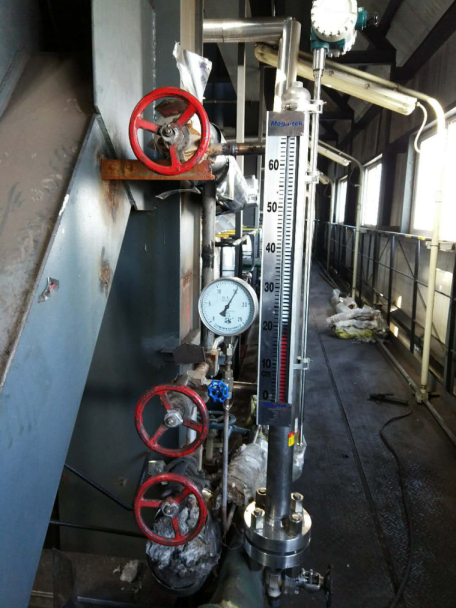

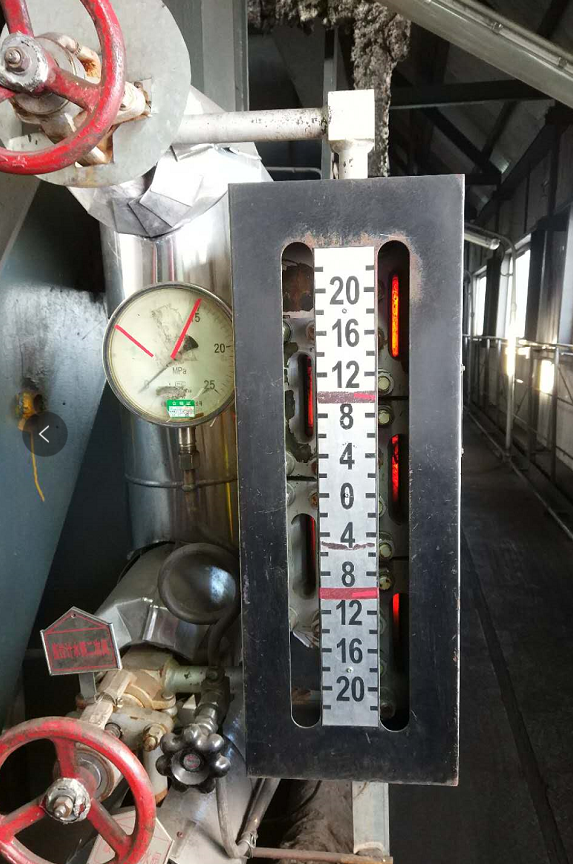

● Magnetostrictive Level Transmitter replaces the on-site bicolor water level gauge, which can be remotely transmit signla and also displayed locally
