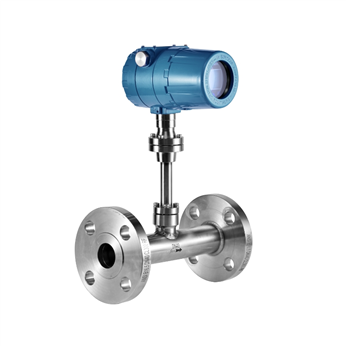

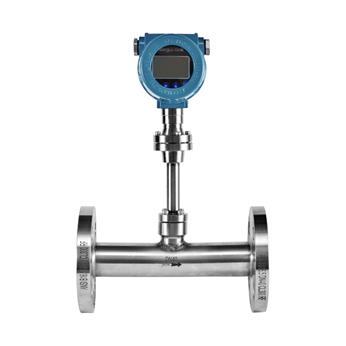

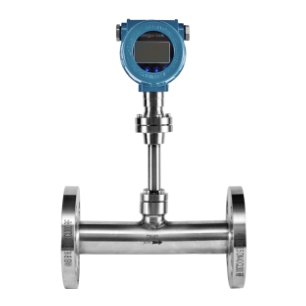

MG9950 Series Thermal Mass Flowmeter is designed based on the principle of thermal diffusion, and uses the constant temperature difference method to accurately measure gases. It has the advantages of small size, high degree of digitization, easy installation, and accurate measurement.

An accurate Thermal Mass Flowmeter does not require temperature and pressure compensation for gas flow rate measurement, making the measurement convenient and accurate. Can obtain the mass flow rate or standard volume flow rate of gas;

Wide range down ratio, capable of measuring gas flow rates as high as 100Nm/s and as low as 0.5Nm/s, can be used for gas leak detection;

Good seismic performance and long service life. The sensor has no moving parts or pressure sensing components, and is not affected by vibration on measurement accuracy;

Easy installation and maintenance, and can achieve non-stop installation and maintenance (requiring special customization) when on-site conditions permit;

Digital design. Overall digital circuit measurement, accurate measurement and easy maintenance;

By using RS-485 communication or HART communication, factory automation and integration can be achieved;

Standard DC24V, AC220V dual power supply;

The installation form can be selected as pipeline type, online plug-in type, plug-in type. The plug-in type is suitable for flow measurement of large-diameter pipelines and irregular pipelines, and is easy to install.
