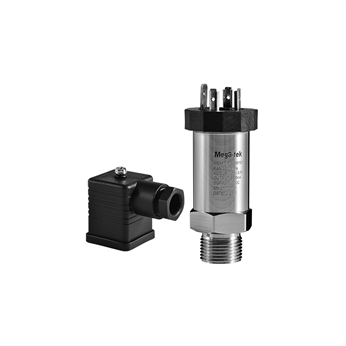

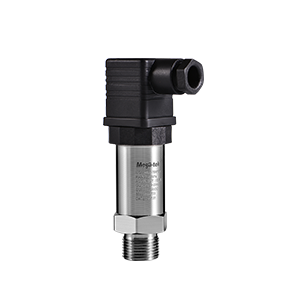

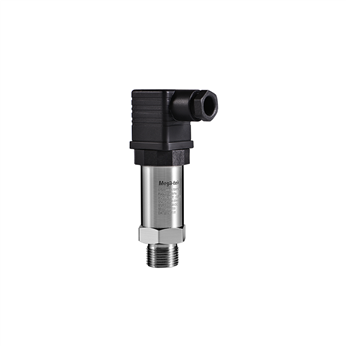

MG5600E Series Pressure Transmitter integrates the latest technology in the field of electronic pressure measurement, based on the core monocrystalline silicon measurement principle. It converts pressure changes into resistance changes, and through circuit detection and fully automatic linear and multi-point temperature compensation, converts them into standard signal outputs.

The monocrystalline silicon pressure measuring element is encapsulated in a stainless steel shell. It is mainly used to measure the pressure, absolute pressure, and differential pressure of gases, liquids, and vapors. It can also be used to measure flow rate and liquid levels. The output of 4-20mA current is proportional to the input pressure. It can also choose HART communication or Modbus-RTU communication, which can flexibly achieve on-site installation and high-precision measurement.

High measurement accuracy, up to 0.1% ;

Medium: gas, steam, liquid;

Sturdy fully welded stainless steel housing;

Independent breathable chamber structure;

High overpressure overload capacity;

Intrinsically safe;

Output HART/4~20mA Modbus;

Response Rapidly;

Compact design;

Easy to install and use.
