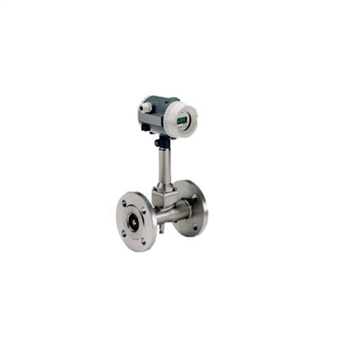

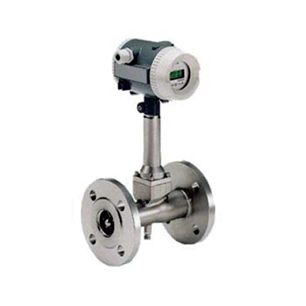

MG9650 Series Spiral Vortex Flowmeter is  a  velocity  based  flow  meter  with  a  wide  range  of  applications. It can metering,  measure,  and  control  the  flow  of  liquids,  vapors,  and  the  vast  majority of gases. Widely used in various industries such as Petroleum, Chemical, Textile, Metallurgy, Food and Beverage, Pulp and Paper, Pharmaceuticals, Energy, etc.

Adopting a fine low-power LCD display screen, the on-site display screen can display instantaneous flow, cumulative flow, frequency and other information;

The probe adopts 4-piece piezoelectric ceramic technology, effectively eliminating the influence of external vibration on measurement;

No moving parts, no wear and tear, no need for mechanical maintenance, few leakage points, long service life;

The probe and signal converter are interchangeable;

A split type signal converter is optional, with a maximum cable length of 10 meters;

Output 4-20mA current signal/pulse signal and Modbus RS485 differential signal;

Two explosion-proof forms: Intrinsic safety : ExiaICIT6Ga, explosion-proof: Exd II CT6Gb;

Equipped with HART Protocol communication protocol and Modbus RS485 interface;

Receive temperature sensor PT1000 signal and pressure sensor signal, perform temperature and pressure compensation, and output 4-20mA current signal.
