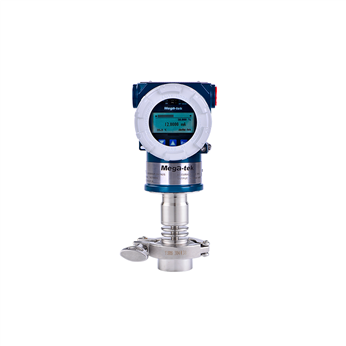

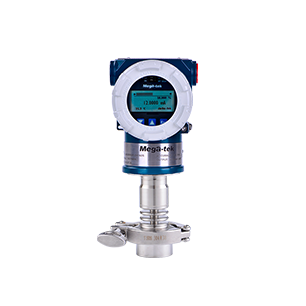

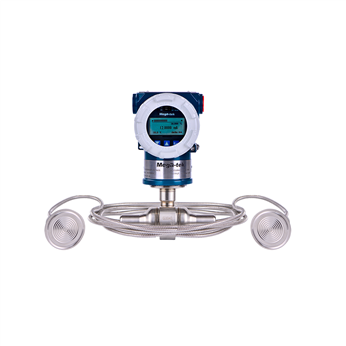

The MG5700 Series Sanitary Pressure/Differential Pressure Transmitter adopts advanced ultra pure monocrystalline silicon pressure sensors to achieve pressure and resistance conversion, and is converted into standard signal output through circuit detection and fully automatic linear and temperature compensation.Adopting a unique sensor packaging process, the wetted diaphragm is welded and polished to a thickness better than 0.4 μ m, meeting the requirements of FDA certified sanitary filling fluid. It is mainly used for pressure, absolute pressure, and differential pressure measurement applications of gases, liquids, and vapors in the food and pharmaceutical industry, as well as for measuring flow rate and liquid level. The output current of 4~20mA is proportional to the input pressure, and HART communication can be selected, flexibly achieve on-site installation and high-precision measurement.

Sensor full compensation technology;

High measurement accuracy, capable of achieving an accuracy of 0.2%;

Measurement medium: gas, steam, liquid;

Sturdy fully welded stainless steel housing or cast aluminum housing;

It has the function of in-situ cleaning/in-situ disinfection (CIP/SIP), with a temperature upper limit of up to 140 ° C;

High overpressure protection capability;

Can achieve intrinsically safe and explosion-proof;

Output HART/4~20mA.
