The central processing circuit module mainly consists of a central processing circuit, anti electromagnetic interference, lightning protection, input voltage limiting, and output circuit parts. The external medium pressure is transmitted to the monocrystalline silicon chip of the pressure sensor through a flexible isolation diaphragm and filling liquid (silicone oil), and the other end of the pressure sensor is connected to the atmosphere (for gauge pressure measurement) or vacuum (for absolute pressure measurement).Under the action of pressure, the bridge of the monocrystalline silicon chip becomes unbalanced, and its resistance changes to output a differential voltage signal. This voltage signal is proportional to the detected pressure, and after being amplified by the sensor circuit, personalized information processing, temperature compensation, and personalized processing adjustment, it outputs a standard analog signal and a digital signal to the DCS system. Meet the requirement of arbitrary replacement of personalized sensor components and central processing circuit modules without the need for recalibration.

Adopting advanced double beam suspended MEMS monocrystalline silicon pressure sensors and integrated anti high pressure overload center diaphragms, it has high stability, high precision, and ultra-high overvoltage performance;

The sensor capsule is embedded with pressure and temperature compensation, personalized information processing, and personalized storage circuits, enabling arbitrary interchangeability of circuit modules without the need for recalibration;

The circuit adopts redundant connections and a fully plug-in anti loosening module design, which is fast and  convenient to install, safe and reliable;

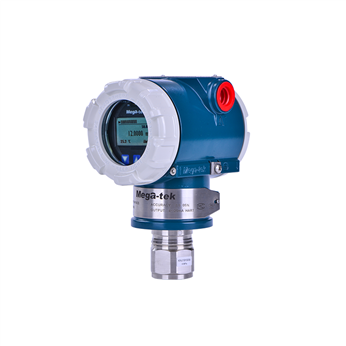

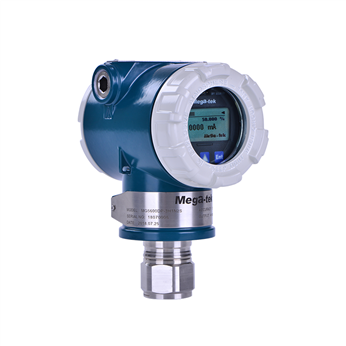

The panel can simultaneously display pressure value, current value, percentage value, percentage rate bar, sensor capsule temperature, logo, and also display transmitter waveform curve parameters;

The display panel can adjust the display orientation within a 360 degree range and can be configured through the three buttons on the panel;

High reliability circuit module with overload (overcurrent and overvoltage) protection, lightning protection, and strong electromagnetic interference resistance;

High stability: Annual drift less than ± 0.05% FS, long-term drift less than ± 0.1% FS/10 years, long-term drift less than ± 0.2% FS/15 years.
