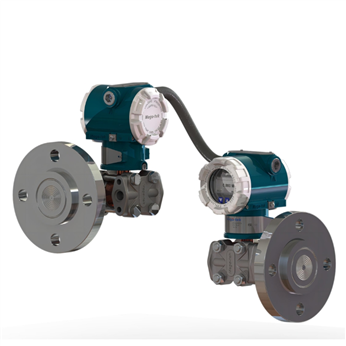

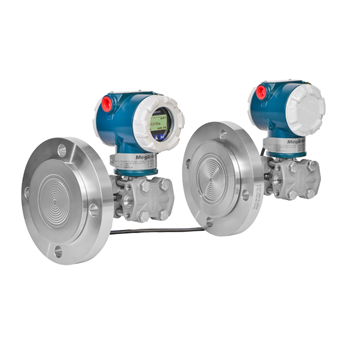

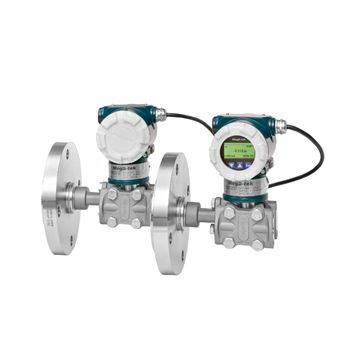

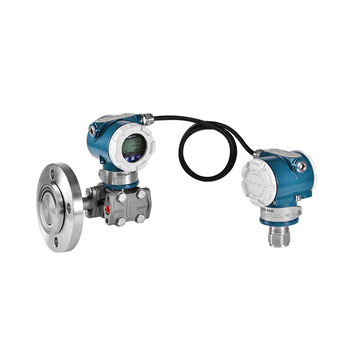

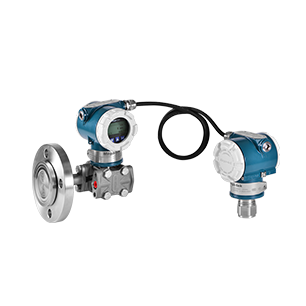

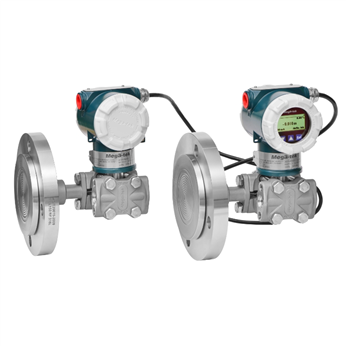

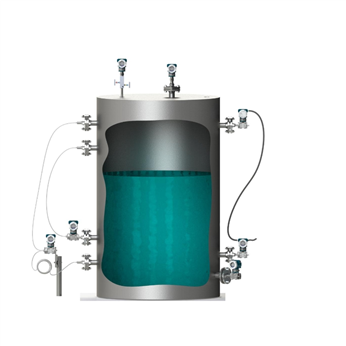

The MG5600ERS Series Electronic Remote System  is  mainly  composed  of personalized  sensor  components  and  central  processing circuit modules: the personalized sensor components are mainly composed of corrosion-resistant   flexible    isolation   diaphragms,  sensor capsules, filling oil, high-precision pressure sensors, high-resolution   temperature    sensors, sensor  amplification  circuits,  personalized  information  processing,  compensation,  and personalized storage circuits.

The central processing circuit module mainly consists of a central processing circuit, anti electromagnetic interference, lightning protection, input voltage limiting, and output circuit parts. The external medium pressure is transmitted to the monocrystalline silicon chip of the pressure sensor through a flexible isolation diaphragm and filling liquid (silicone oil), and the other end of the pressure sensor is connected to the atmosphere (for gauge pressure measurement) or vacuum (for absolute pressure measurement).   Under the action of pressure, the bridge of the monocrystalline silicon chip becomes unbalanced, and its resistance changes to output a differential voltage signal. This voltage signal is proportional to the detected pressure, and after being amplified by the sensor circuit, personalized information processing, temperature compensation, and personalized processing adjustment, it outputs a standard analog signal and a digital signal to the DCS system. Meet the requirement of arbitrary replacement of personalized sensor components and central processing circuit modules without the need for recalibration.

No need for capillary oil filling, greatly improving temperature characteristics and long-term stability;

The electronic differential pressure measurement system greatly reduces safety risks;

Shorten installation and maintenance time, reduce spare parts requirements, and lower user costs;

Multi-variable measurement, standard HART communication;

High repeatability and long-term stability;

Anti overload and with monitoring function.
