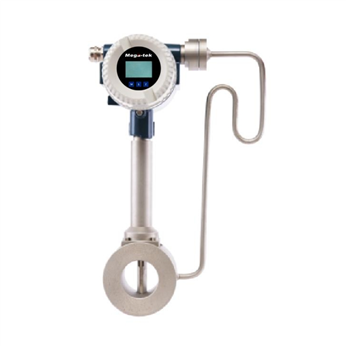

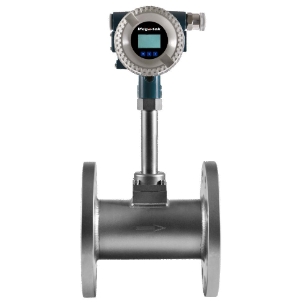

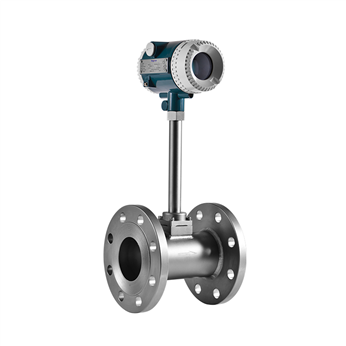

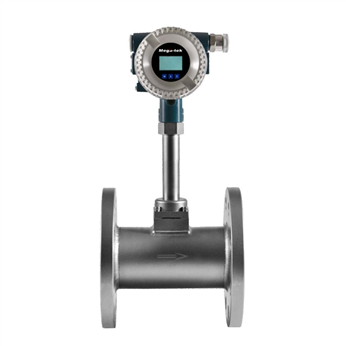

MG9600 Series Vortex Flowmeter is an extremely versatile flow instrument that covers flow measurement and control of liquids, gases, high/low temperature overheated steam and saturated steam. Vortex flowmeter is a type of velocity flowmeter based on the Karman vortex theory. It uses piezoelectric crystals to detect the frequency of vortices generated when a fluid passes through a vortex generator, thereby measuring the flow rate of the fluid. Vortex flowmeters have been widely used in industries such as Petroleum, Chemical, Steel, Power, Metallurgy, Light Industry, Food and Beverage, Pharmaceuticals, and Water Treatment due to their excellent performance and high reliability.

Seismic resistant type: The vortex flowmeter adopts advanced sensors for detection, eliminating the influence of external vibrations;

Intelligent type: The instrument parameters and range can be modified on-site through buttons or Hand-held Operator;

High accuracy: Measurement value of liquid ≤ ± 1%; Measurement value of gas/steam ≤ ± 1.5%;

Display mode: instantaneous flow rate and cumulative flow rate of the measured medium;

Communication mode: HART communication protocol, RS485

Compensation type: MG9600T/R can equiped with temperature and pressure compensation functions;

Can achieve high temperature of 450 ℃，high pressure up to 42MPa;

The wetted parts have no moving parts, are sturdy, durable, and maintenance free.
