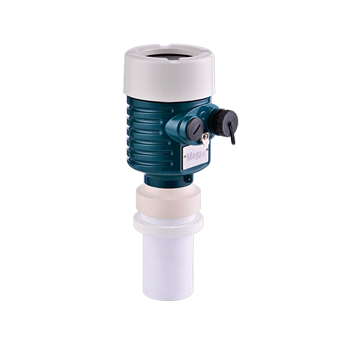

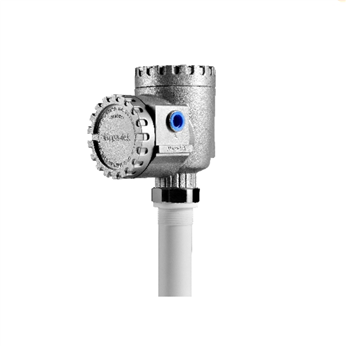

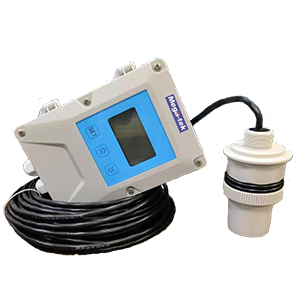

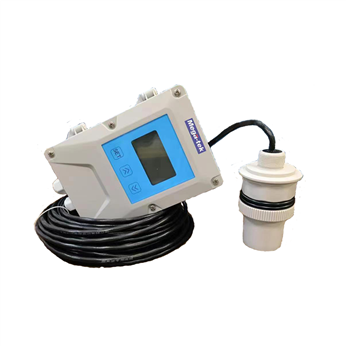

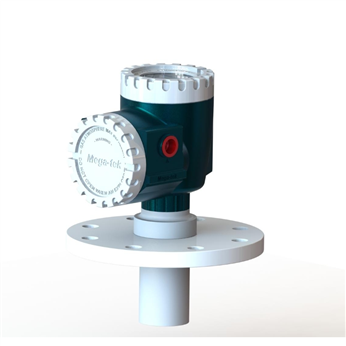

The MG8750 Series Ultrasonic Level Transmitter is a non-contact level Instrument produced based on advanced EchoDiscovery technology. It adopts a fully intelligent module design, outputting 4-20mA analog signals and HART protocol digital signals. The instrument is installed in an integrated manner, and the probe is made of corrosion-resistant materials. The structure is compact and sturdy, and is not affected by bumps, vibrations, medium density and dielectric constant changes. Therefore, it has the characteristics of large measurement range, wide application range, simple and convenient installation, maintenance free, and long service life.

This level transmitter is suitable for continuous measurement of liquid level in open containers, converting the liquid level height into a 4-20mA signal and outputting a HART protocol digital signal. Widely used in industrial fields such as Petroleum Industry, Chemical Industry, Electric Power Industry, Metallurgy Industry, Food and Beverage, Pulp and Paper, Machinery Industry,  etc.,  it  is  suitable  for  liquid  level measurement of various liquids, slurries, particles, powders, flakes, high viscosity, easy to crystallize hanging materials and mixed media, especially for liquid level measurement of strong corrosive media such as acids and alkalis.

Advanced EchoDiscovery technology;

Suitable for liquids, slurries, particles, powders, flakes, high viscosity, easy to crystallize hanging media and mixed medium;

No drift, unaffected by changes in dielectric density and dielectric constant;

Strong corrosion resistance, made of polytetrafluoroethylene material for liquid contact, resistant to corrosive medium such as strong acids and alkalis;

The measurement range is large, and the range of 0.3-30m can be freely selected;

Calibration is simple and convenient, through buttons or by a HART handheld device;

Not affected by bumps, vibrations, mixing, etc;

Long lifespan, fully intelligent module design, and movable parts without disassembly or wear ensure the longevity of instrument operation;

Easy and convenient installation, can be installed through the thread and flange on the container, and the operation is fast, convenient, and reliable;

Replace the following instruments on site, including float type, optical fiber type, nuclear type, etc.
