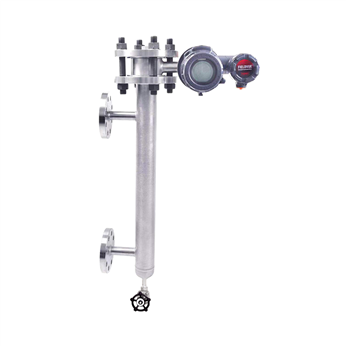

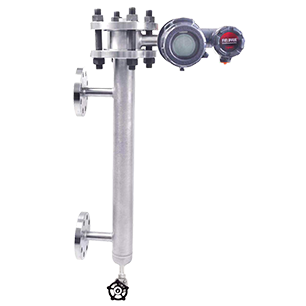

MG8730 Series Intelligent Displacer(Buoy) Level/Interference Transmitter is a reliable level/interface measuring instrument. The sensor uses non-contact magnetic effect Hall elements, and the circuit adopts a fully intelligent module design, outputting 4-20mA analog signals and HART protocol digital signals. The LCD display in the module shows 4-20mA, percentage, engineering units, and has linearization processing, measurement error compensation, self diagnostic functions, etc. for the measurement output signal. Therefore, it has the characteristics of high measurement accuracy, simple and fast calibration, safety and reliability, and long service life.

The fully intelligent module linearizes the measurement output, compensates for errors, adjusts damping, and self diagnoses faults;

Automatically compensate for density changes caused by temperature fluctuations;

Easy calibration, medium calibration and dry calibration;

Multi parameter measurement, measuring the liquid level, interface, and density of the medium;

Easy calibration, button calibration or HART controller calibration;

Dual-chamber housing, circuit module and terminal isolation, easy to operate, safe and reliable;

Resistant to transportation bumps, installation collisions, electronic modules resistant to vibration and moisture;

Protection against misconnection, lightning protection, and radio frequency interference.
