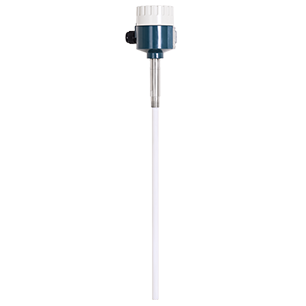

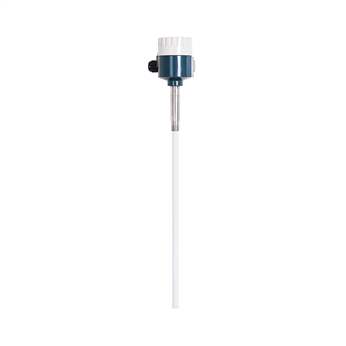

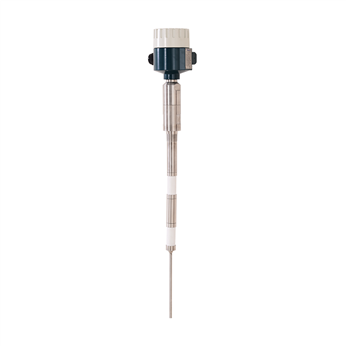

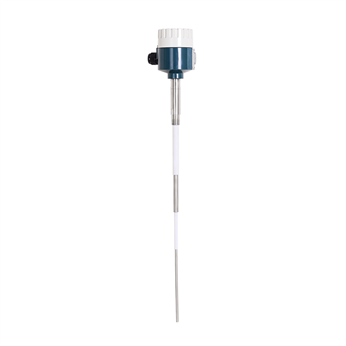

The MG8610 Series RF Admittance Level Switch adopts RF admittance technology and applies unique circuits and three terminal shielding technology. It not only has the single capacitance measurement function of the RF capacitor switch, but also can simultaneously measure impedance and integrate capacitance and impedance information together, reliably eliminating the influence of hanging materials or scaling on the probe and container wall. It has the characteristics of wide application range, long service life, maintenance free, simple and convenient installation, and high control accuracy. The output signal of this level switch is a relay two group normally open and normally closed contact switch signal, which is suitable for flammable and explosive occasions, especially for level control of corrosive medium such as acid and alkali. Widely used for level control in industrial fields such as Petroleum, Chemical, Metallurgical, Pharmaceutical, Power, Food, Paper, etc.

Simultaneously measuring the impedance and capacitance of the hanging material, reliably solving the impact of hanging material and scaling on measurement accuracy;

The wetted parts are made of all stainless steel and lined with polytetrafluoroethylene materials, which are resistant to corrosive medium such as strong acids and alkalis;

Not affected by changes in medium density and temperature;

Clear on-site indication of LED red/blue;

Modular design and movable parts without disassembly or wear, with a long service life;

Wrong wiring and reverse connection protection, resistant to radio frequency interference.
