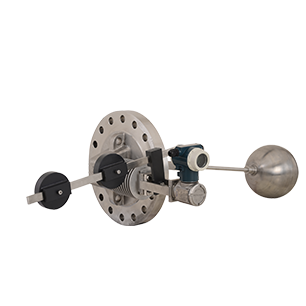

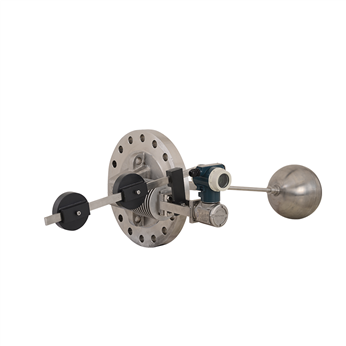

The MG8530 Series Floating Level/Interface Transmitter  uses  reliable  angular  displacement  sensors,  and the circuit adopts a fully intelligent module design, outputting 4-20mA analog signals and HART protocol digital signals. The LCD display in the module shows 4-20mA, percentage, and engineering units, and has functions such as linearization of the measured output, measurement error compensation, self diagnosis, and output signal delay. It has the characteristics of high measurement accuracy, simple and fast calibration, safety and reliability, and long service life. This series of intelligent float level/interface transmitters are directly installed on various storage tank equipment. Widely used in various slurries, viscous and dirty media, asphalt, grease and other viscous media, especially suitable for liquid level measurement of hot heavy oil (temperature ≤ 842 ℉ (450 ℃), pressure ≤ 40Bar (4.0MPa).

Suitable for liquid level measurement of high viscosity medium slurry, viscous dirty medium, asphalt, grease and other substances;

Automatically compensate for density changes caused by temperature fluctuations;

Easy calibration, dry calibration;

Dual-chamber explosion-proof isolation, safe and convenient operation;

Resistant to transportation bumps, installation collisions, electronic modules resistant to vibration, temperature, and moisture.
