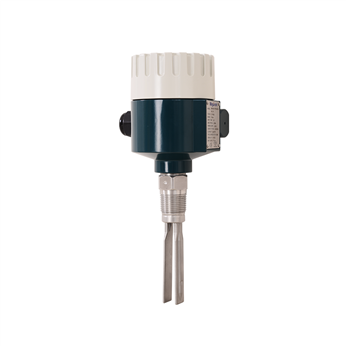

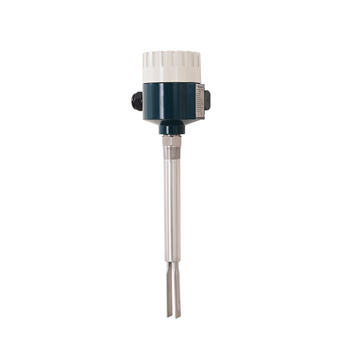

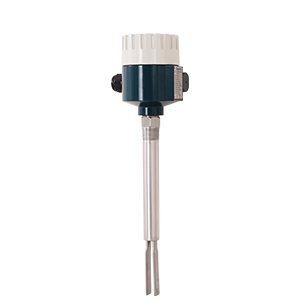

The MG8400 Series Vibration Fork Level Switch is a level control instrument that is easy to install, does not require on-site debugging, is maintenance free, has a wide range of applications, and is highly reliable. Suitable for level control of liquids, slurries, powders, solid particles, sheet-like medium, as well as highly corrosive medium such as acids and alkalis, and not affected by medium flow rate. It is applicable to the working condition with foam and the level control of the vessel with large vibration when stirring the liquid level in the vessel. The MG8400 Series Vibration Fork Level Switch adopts a modular design, which is compact in structure, easy to operate, safe, stable and reliable, and has an extremely long service life; The power supply adopts a dual-purpose AC/DC input power supply, which is easy to apply and has good universality; The on-site LED red/blue indicates clearly.

The MG8400 Series Vibration Fork Level Switch is suitable for flammable and explosive environments. Widely used for level control of open or pressurized containers in industrial fields such as Petroleum, Chemical, Power, Metallurgy, Food and Beverage, Papermaking, and Machinery.

Level control for turbulent/splashing applications;

No calibration required on-site, simple and convenient;

DC and AC are optional, with convenient application and good universality;

Clear on-site indication of LED red/blue;

Not affected by dielectric constant, bubbles, pressure, temperature, and gas phase changes of the medium;

The wetted parts, made of 316LSST or other anti-corrosion materials, resistant to strong acids, alkalis and other medium;

Resistant to transportation bumps, installation collisions, electronic modules resistant to vibration, temperature, and moisture;

Wrong wiring and reverse connection protection, resistant to radio frequency interference;

Piezoelectric crystals vibrate the tuning fork at its natural frequency, providing highly sensitive and fast feedback signals;

The high-pressure cast aluminum case is pressure resistant and waterproof, suitable for harsh working conditions, and reliably protects electronic devices from moisture damage during on-site wiring, making it easy to install and maintain.
