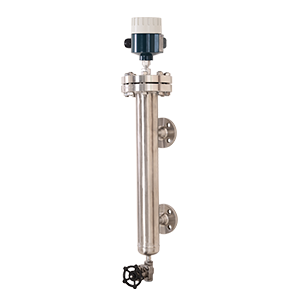

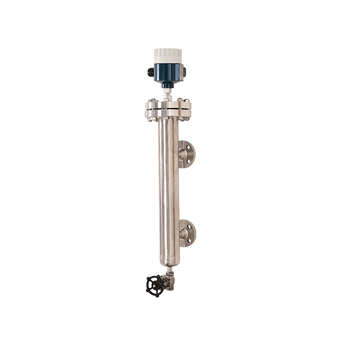

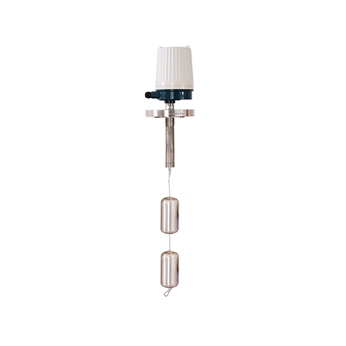

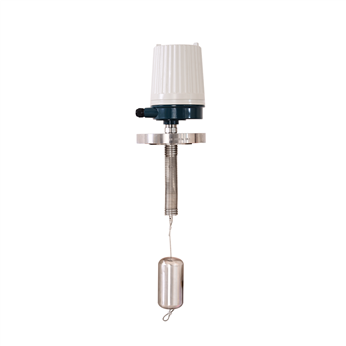

The MG8330 Series Buoy (Float) Heavy Hammer Liquid Level Switch is a passive contact output, with high reliability, reasonable structure, and easy installation. During the design process, various forms of equipment connection and installation in the petrochemical industry were taken into account to produce liquid level switch that meet the requirements. The switch can be used in various flammable and explosive environments, suitable for liquid level control, alarm and fault interlocking of open or pressurized containers in industrial fields such as Petroleum, Chemical, Power, Environmental Protection, Metallurgy, Food and Beverage, Pulp and Paper, Urban Water Supply, Machinery, etc.

Suitable for low-density liquid level control ranging from 400 to 700 Kg/m ³;

Control range ≤ 236 "(6000mm), flexible and adjustable on site;

Passive contact output, convenient and reliable;

High temperature resistance of 302-842 ℉ (150-450 ℃), high pressure resistance of 63-250Bar (6.3-25MPa) liquid level control;

Contact capacity 5A/250VAC, 5A/24VDC.
