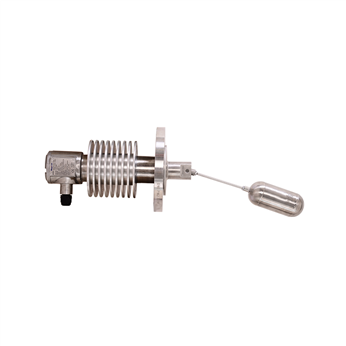

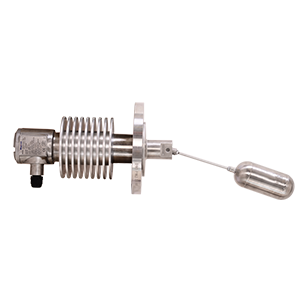

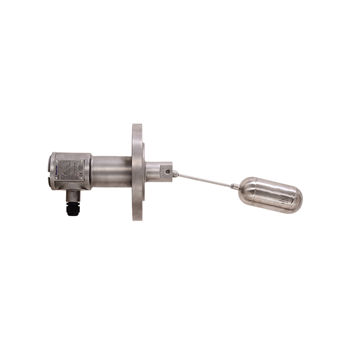

The MG8320 Series Float Level Switch is suitable for level control of open or pressurized containers, and the switch has a passive contact output. When the liquid level is at the upper or lower limit position, the switch will activate and output a switch signal. The MG8320M model is a manual self-test switch with an external manual detection and control mechanism that can detect the switch and system while the equipment is in operation, ensuring the safe operation of the switch and system. MG8320H is a high-temperature resistance switch that can operate reliably even in harsh environments with temperatures reaching 932 ℉ (500 ℃).

High temperature resistace type 302-932 ℉ (150-500 ℃);

Passive contact output, convenient and reliable;

Contact capacity: 5A/250VAC/120VAC, 5A/24VDC;

Side-side installation, simple and convenient;

The float has a special structure and can withstand a pressure of 420 bar (42 MPa).
