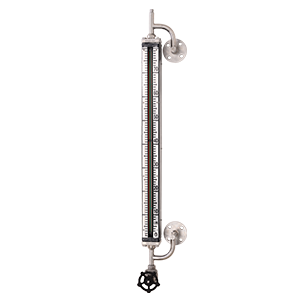

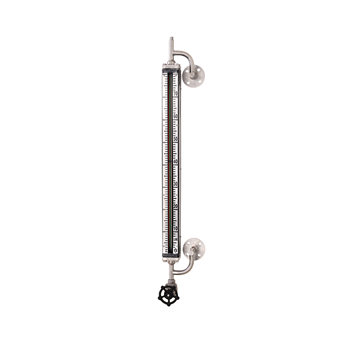

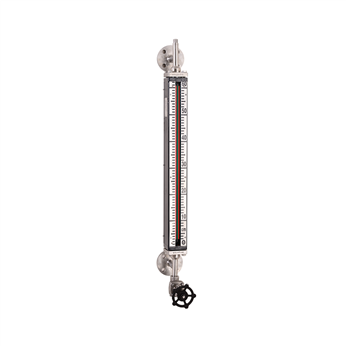

MG8230 Series Color Quartz Tube Level Gauge is made of high-purity transparent quartz tube, which has the characteristics of high temperature resistance, corrosion resistance, no blind spots, anti bonding, good sealing performance, easy maintenance and flushing, clear liquid and gas display, and long service life. The liquid level gauge is installed on the boiler and various container equipment, and can directly observe changes in liquid level. The liquid and gas displays have a large contrast, with the liquid phase displaying green and the gas phase displaying red. The interface measurement shows a three color interface, which is clear and distinct when observed from a distance. It is an ideal direct reading level gauge suitable for flammable and explosive environments, and is an updated product of ordinary glass plate level gauges. Widely used for measuring the liquid level of various transparent liquids in open or pressurized containers in industrial fields such as petroleum, chemical, power, metallurgy, environmental protection, ships, food, machinery, etc.

Suitable for temperatures ranging from -58 to 842 ℉ (-50 to 450 ℃);

The liquid wetted parts are made of all stainless steel and lined with polytetrafluoroethylene materials, which are resistant to corrosive media such as strong acids and alkalis;

The gas phase appears red, and the liquid phase appears green, showing clear distinctions and no blind spots;

Automatic sealing protection, when the glass is accidentally damaged, the steel ball automatically seals to prevent the liquid inside the container from splashing out.
