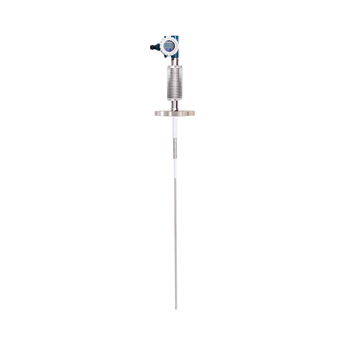

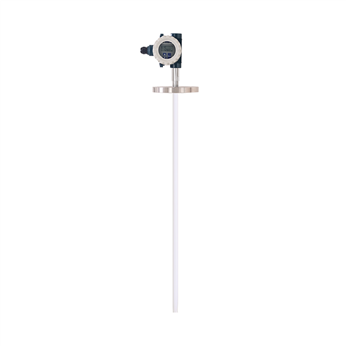

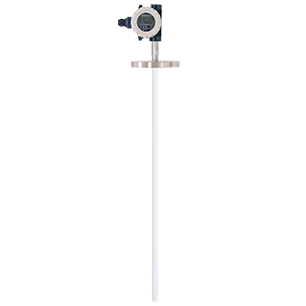

The MG8650 Series RF Admittance Level Transmitter adopts RF admittance technology to simultaneously measure capacitance and impedance. The unique circuit module anti hanging material circuit integrates capacitance information and impedance information together, which can reliably eliminate the effects of hanging materials and scaling on the probe rod and container wall. Adopting fully intelligent module design, outputting 4-20mA analog signals and HART protocol digital signals. The LCD display inside the module shows 4-20mA, percentage, and engineering unit. A movable component without disassembly or wear, characterized by a large measurement range, high accuracy, easy installation, maintenance free, and long service life. It uses a variety of exposed and insulated material types of probes, suitable for level measurement of viscous, sticky, granular, powdery, and mixed media.

This transmitter is suitable for flammable and explosive environments, especially for measuring corrosive media such as acids and alkalis. Widely used for continuous level/interface measurement in fields such as Petroleum, Chemical, Metallurgical, Pharmaceutical, Power, Food and Beverage, Pulp and Paper, etc.

Simultaneously measuring the impedance and capacitance of the hanging material, reliably solving the impact of hanging material and scaling on measurement accuracy;

The wetted parts are made of all stainless steel and lined with polytetrafluoroethylene materials, which are resistant to corrosive medium such as strong acids and alkalis;

Not affected by changes in medium density and temperature;

Modular design and movable parts without disassembly or wear, with a long service life;

Wrong wiring and reverse connection protection, resistant to radio frequency interference;

There are various installation methods, including thread, flange, and cylinder side installation, which are easy to operate.
