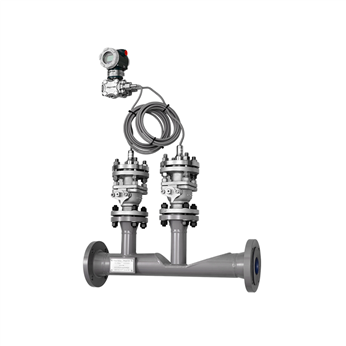

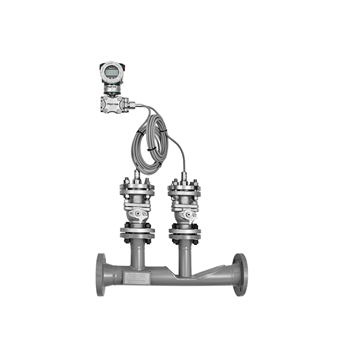

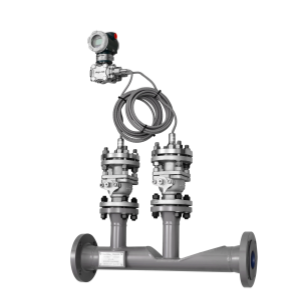

The MG9350 Series Rectangular Flowmeter is a new type of differential pressure flow primary component that can measure gases, liquids, and vapors (including oil slurry, high viscosity liquids) as well as heavy frictional (containing solid particles) and corrosive fluids.  This type of throttling element is based on wedge and Venturi, and combines the advantages of both to make significant improvements in key performance, becoming a high-precision and highly reliable throttling element, thus expanding the application range of differential pressure flow meters.

Low permanent pressure loss;

Optional integrated installation transmitter;

Used for measuring volumetric flow rate;

The overall structure is sturdy and durable;

Can be used for circular and square pipes;

Wedges can be trapezoidal, semi-circular trapezoidal, and in special cases, cylindrical shapes can be used;

Can measure high viscosity, strong corrosiveness, and heavy friction medium;

Large range down ratio (10:1);

High precision (± 0.5%), excellent repeatability (± 0.2%).
