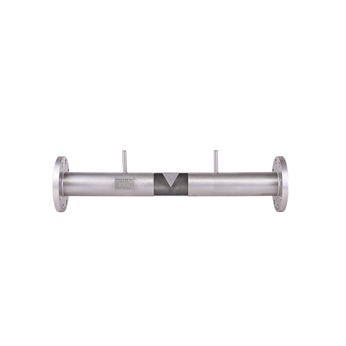

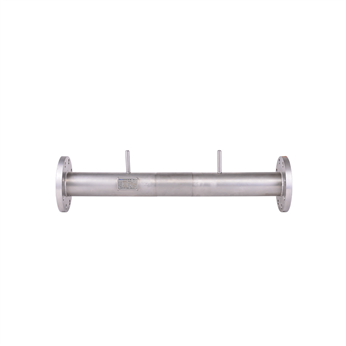

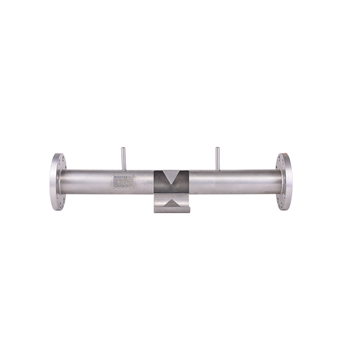

The MG9300 series wedge flowmeter throttling element is composed of a V-shaped wedge block, flange, and pipeline. Its smooth top angle faces downwards, which is conducive to the smooth passage of liquids or viscous liquids containing suspended particles, and will not cause stagnation on the upstream side of the throttling element. For measuring heavy oil, fuel oil, residual oil, etc., it can measure medium with viscosity up to 500mPaS and Reynolds as low as 500. This series of flow meters has high accuracy, is suitable for complex working conditions, has high cost-effectiveness, and has unparalleled advantages and irreplaceable role in flow measurement occasions with low flow rate, small flow rate, and large pipe diameter.

Mainly used for flow measurement of high viscosity (heavy oil, residue oil, diesel, engine oil, etc.), industrial gas (coke oven gas, blast furnace gas, generator gas, city gas), sewage liquid and other medium. Wedge Flowmeters are widely used in fields such as Petroleum, Chemical, Power, and Light Industry.

Low permanent pressure loss;

Optional integrated installation transmitter;

Used for measuring volumetric flow rate;

The overall structure is sturdy and durable;

Excellent long-term stability;

Bidirectional flow measurement capability;

For any working condition, it is possible to flexibly choose the diameter and wedge ratio of the flowmeter to achieve no reduction or expansion in diameter;

Compared with other principle flow meters, it can measure fluids with low Reynolds numbers;

The throttling element has a rectifying and redistributing effect on the fluid, and the straight pipe section is relatively low;

Excellent precision and repeatability;

The accuracy after calibration can reach ± 0.5% (Reynolds number>500) with a repeatability of ± 0.2%.
