The external medium pressure is transmitted to the monocrystalline silicon chip of the pressure sensor through a flexible isolation diaphragm and filling liquid (silicone oil), and the other end of the pressure sensor is connected to the atmosphere (for gauge pressure measurement) or vacuum (for absolute pressure measurement).Under the action of pressure, the bridge of the monocrystalline silicon chip becomes unbalanced, and its resistance changes to output a differential voltage signal. This voltage signal is proportional to the detected pressure, and after being amplified by the sensor circuit, personalized information processing, temperature compensation, and personalized processing adjustment, it outputs a standard analog signal and a digital signal to the DCS system. Meet the requirement of arbitrary replacement of personalized sensor components and central processing circuit modules without the need for recalibration.

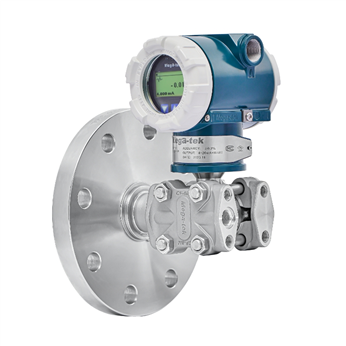

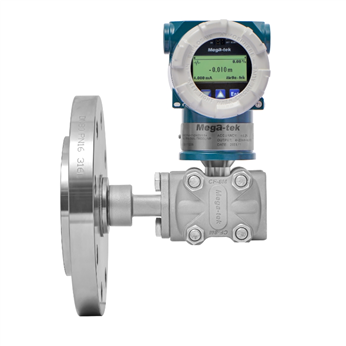

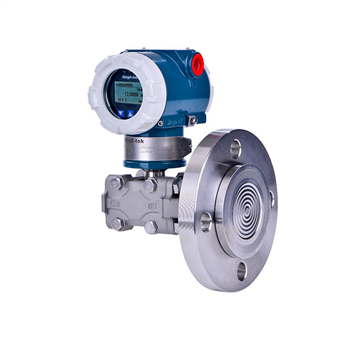

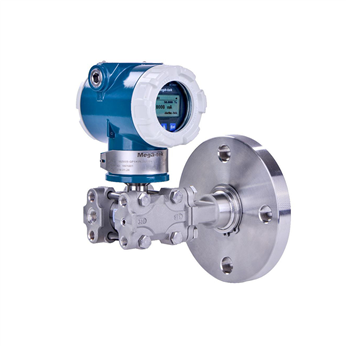

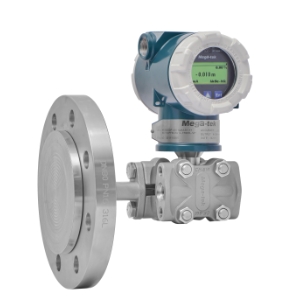

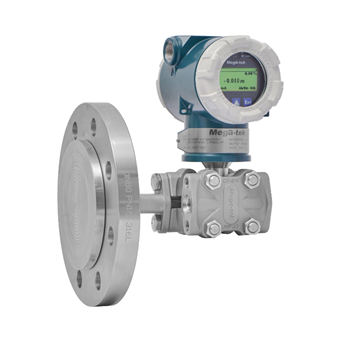

The transmitter is integrated with the measuring flange diaphragm, with HART protocol, LCD display, compact and lightweight, easy to install and maintain;

Modular transmitter: Long term stability, high static pressure/overload resistance;

Annual stability of ± 0.05%, with a guarantee period of 5 years;

Linear compensation with more than 81 points and temperature compensation with 41 points to ensure long-term stability;

Adopting advanced double beam suspended MEMS monocrystalline silicon pressure sensors and integrated anti high pressure overload center diaphragms, it has extremely high stability, high precision, and ultra-high overvoltage performance;

Ultra wide measurement range: 100Pa-70MPa, up to 110MPa pressure transmitter;

Micro range unidirectional overpressure up to 16MPa;

The sensor capsule is embedded with pressure, temperature compensation, and feature processing circuits, enabling arbitrary interchangeability of circuit modules;

Ultra high temperature pressure measurement: With a unique ultra-high temperature manufacturing process, the remote  sealing transmitter can operate reliably under high temperature conditions of 700 ℃;

High accuracy: accuracy ± 0.04%, maximum accuracy ± 0.03%, maximum range compression ratio 100:1;

Annual drift less than ± 0.05%, long-term drift less than ± 0.1%/10 years, long-term drift less than ± 0.2%/15 years;

The circuit adopts a multi redundant connection design, and the connectors are plated with pure gold with a thickness of 2um, which solves the problem of poor oxidation contact due to long connection time;

The header can simultaneously display pressure value, current value, percentage value, percentage rate bar, sensor capsule temperature, logo, and also display transmitter waveform curve parameters;

The circuit module is equipped with overcurrent and overvoltage protection, strong electromagnetic interference resistance, lightning protection and other functions.
