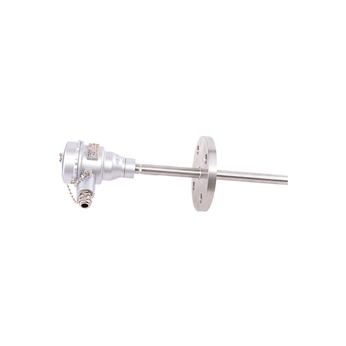

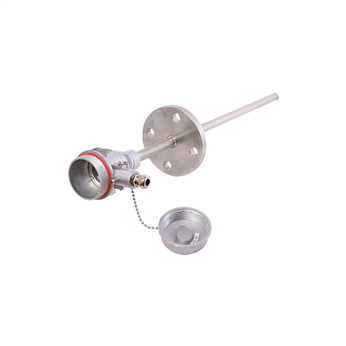

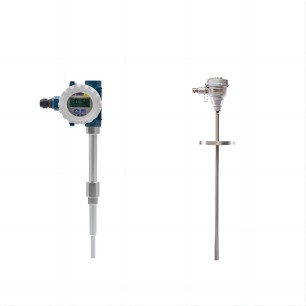

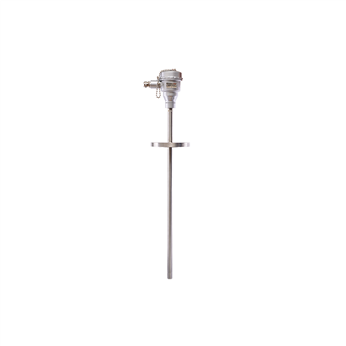

The MG2100 Series Thermocouple Thermometer and Temperature Transmitter are commonly used temperature measuring instruments in industrial automation process control. It is the simplest and most reliable contact temperature sensor that can directly measure the temperature of liquid, steam, gas, and solid surfaces within the range of -200~+1800 ℃ in various production projects. The characteristics of simple structure, reasonable price, and easy maintenance make it widely used in industries such as Petroleum, Chemical, Metallurgical, Power, Machinery, Food and Beverage, Plastics, etc.

Thermocouple temperature measurement is based on the Seebeck effect, where two conductors with different compositions form a closed loop. When there is a temperature gradient at both ends of the conductor, current flows through the loop, and the thermoelectric potential at both ends of the conductor corresponds to the temperature difference between the two ends.

Spring type temperature sensing element with better seismic performance;

Abundant installation interface forms;

Customized design and production capabilities for special operating conditions, such as the power station specific thermocouple series;

Wide measurement range, with good accuracy and stability;

Simple construction and convenient use;

The dynamic response time is fast.
